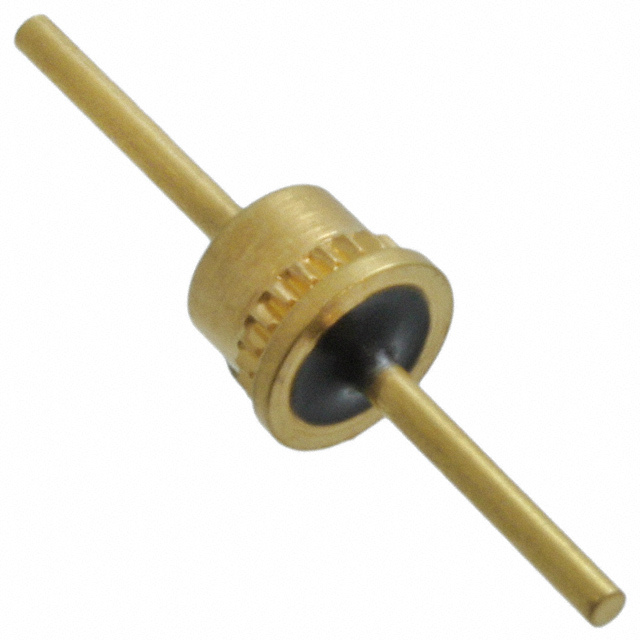

SCI-9925-153
- 型號:
- SCI-9925-153
- 描述:
- CAP FEEDTHRU 0.015UF 50V AXIAL
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 15755 Pieces
簡單介紹
BYCHIPS是 SCI-9925-153的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的SCI-9925-153購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 額定: | 50V |
|---|---|
| 公差: | 0%, +100% |
| 螺紋尺寸: | - |
| 溫度係數: | - |
| 尺寸/尺寸: | 0.156" Dia x 0.110" L (3.97mm x 2.79mm) |
| 系列: | 9900 |
| 評級: | - |
| 封装: | Bulk |
| 封裝/箱體: | Axial, Knurled |
| 其他名稱: | 1171-1104 SCI9925153 |
| 工作溫度: | -55°C ~ 125°C |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | SCI-9925-153 |
| 插入損耗: | 40dB @ 100MHz |
| 高度（最大）: | - |
| 展開說明: | 0.015µF Feed Through Capacitor 50V 5A 10 mOhm Axial, Knurled |
| 描述: | CAP FEEDTHRU 0.015UF 50V AXIAL |
| 直流電阻（DCR）（最大值）: | 10 mOhm |
| 當前: | 5A |
| 電容: | 0.015µF |
