購買 SCD224K122A3Z25-F與BYCHPS
購買即有保證

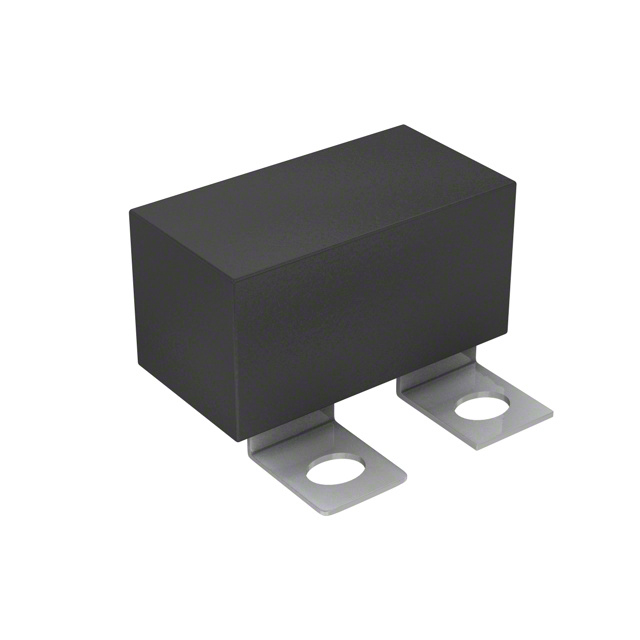

SCD224K122A3Z25-F
- 型號:
- SCD224K122A3Z25-F
- 描述:
- CAP FILM 0.22UF 1.2KVDC SCREW
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 12940 Pieces
簡單介紹
BYCHIPS是 SCD224K122A3Z25-F的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的SCD224K122A3Z25-F購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓 - 直流: | 1200V (1.2kV) |
|---|---|
| 額定電壓 - AC: | 580V |
| 公差: | ±10% |
| 終止: | Screw Terminals |
| 尺寸/尺寸: | 1.850" L x 0.969" W (47.00mm x 24.60mm) |
| 系列: | SCD |
| 封装: | Bulk |
| 封裝/箱體: | Rectangular Box |
| 工作溫度: | -40°C ~ 85°C |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 12 Weeks |
| 製造商零件編號: | SCD224K122A3Z25-F |
| 引線間距: | 1.000" (25.40mm) |
| 高度 - 座高（最大）: | 0.949" (24.10mm) |
| 特徵: | - |
| 展開說明: | 0.22µF ±10% Film Capacitor 580V 1200V (1.2kV) Polypropylene (PP), Metallized Rectangular Box |
| ESR（等效串聯電阻）: | 19 mOhm |
| 絕緣材料: | Polypropylene (PP), Metallized |
| 描述: | CAP FILM 0.22UF 1.2KVDC SCREW |
| 電容: | 0.22µF |
| 應用: | Snubber |
| Email: | [email protected] |
