購買 S90R11ABD1-24與BYCHPS
購買即有保證

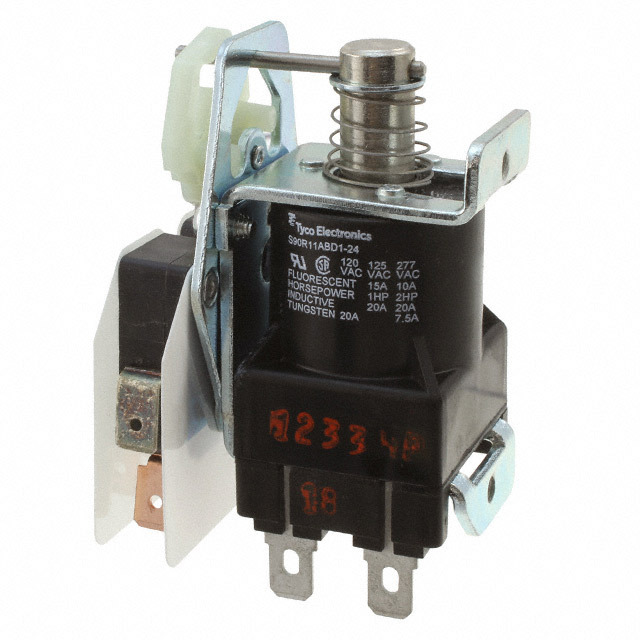

S90R11ABD1-24
- 型號:
- S90R11ABD1-24
- 描述:
- RELAY IMPULSE DPDT 20A 24V
- 無鉛狀態/ RoHS狀態:
- 含鉛/符合RoHS
- 庫存數量:
- 15767 Pieces
簡單介紹
BYCHIPS是 S90R11ABD1-24的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的S90R11ABD1-24購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 20.4 VAC |
|---|---|
| 關閉電壓（最小）: | - |
| 端接類型: | Quick Connect - 0.250" (6.3mm) |
| 切換電壓: | 277VAC - Max |
| 系列: | S90R |
| 繼電器類型: | Impulse |
| 封装: | Bulk |
| 其他名稱: | 6-1393134-6 6-1393134-6-ND 613931346 PB1909 S90R11ABD1-24-ND |
| 工作溫度: | -10°C ~ 60°C |
| 安裝類型: | Chassis Mount |
| 製造商標準交貨期: | 14 Weeks |
| 製造商零件編號: | S90R11ABD1-24 |
| 特徵: | Insulation - Class B |
| 展開說明: | Impulse Relay DPDT (2 Form C) 24VAC Coil Chassis Mount |
| 描述: | RELAY IMPULSE DPDT 20A 24V |
| 觸點額定值（電流）: | 20A |
| 觸點材料: | - |
| 聯繫表: | DPDT (2 Form C) |
| 線圈電壓: | 24VAC |
| 線圈類型: | Latching, Single Coil |
| 線圈電阻: | 8.7 Ohms |
| 線圈功率: | 9 VA |
| 線圈電流: | 375mA |
| Email: | [email protected] |
