購買 RZ03-1C4-D009與BYCHPS
購買即有保證

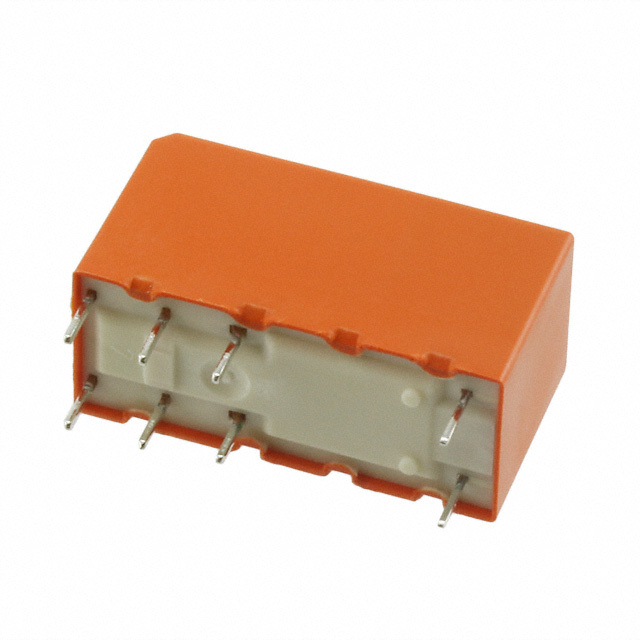

RZ03-1C4-D009
- 型號:
- RZ03-1C4-D009
- 描述:
- RELAY GEN PURPOSE SPDT 16A 9V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14739 Pieces
簡單介紹
BYCHIPS是 RZ03-1C4-D009的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的RZ03-1C4-D009購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 6.3 VDC |
|---|---|
| 關閉電壓（最小）: | 0.9 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 400VAC - Max |
| 系列: | RZ, SCHRACK |
| 發布時間: | 6ms |
| 繼電器類型: | General Purpose |
| 封装: | Tube |
| 其他名稱: | 2-1415899-1 PB1276 RZ031C4D009 |
| 工作溫度: | -40°C ~ 85°C |
| 操作時間: | 8ms |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 13 Weeks |
| 製造商零件編號: | RZ03-1C4-D009 |
| 特徵: | Insulation - Class F |
| 展開說明: | General Purpose Relay SPDT (1 Form C) 9VDC Coil Through Hole |
| 描述: | RELAY GEN PURPOSE SPDT 16A 9V |
| 觸點額定值（電流）: | 16A |
| 觸點材料: | Silver Nickel (AgNi) |
| 聯繫表: | SPDT (1 Form C) |
| 線圈電壓: | 9VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 200 Ohms |
| 線圈功率: | 400 mW |
| 線圈電流: | 44.4mA |
| Email: | [email protected] |
