購買 RM732060與BYCHPS
購買即有保證

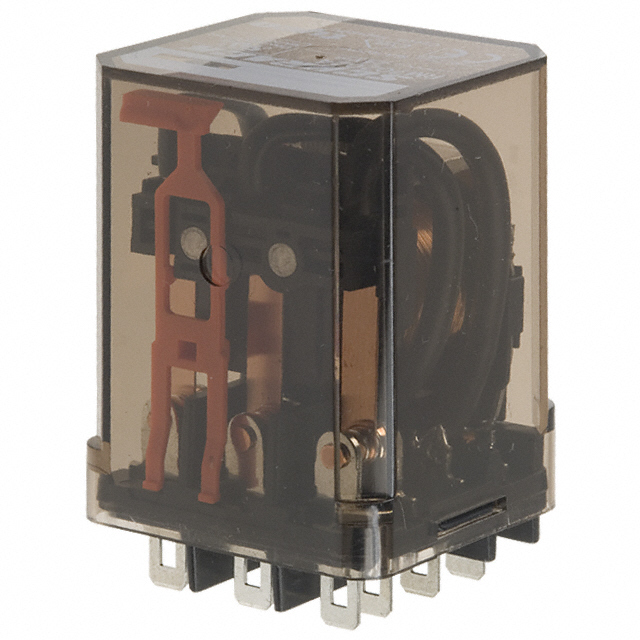

RM732060
- 型號:
- RM732060
- 描述:
- RELAY GEN PURPOSE 3PDT 16A 60V
- 無鉛狀態/ RoHS狀態:
- 含鉛/符合RoHS
- 庫存數量:
- 17494 Pieces
- 數據表:
- RM732060.pdf
簡單介紹
BYCHIPS是 RM732060的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的RM732060購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 45 VDC |
|---|---|
| 關閉電壓（最小）: | 6 VDC |
| 端接類型: | Plug In, Quick Connect - 0.187" (4.7mm) |
| 切換電壓: | 440VAC - Max |
| 系列: | RM, SCHRACK |
| 發布時間: | 10ms |
| 繼電器類型: | General Purpose |
| 封装: | Tray |
| 其他名稱: | 1393147-9 |
| 工作溫度: | -45°C ~ 60°C |
| 操作時間: | 15ms |
| 安裝類型: | Socketable |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 29 Weeks |
| 製造商零件編號: | RM732060 |
| 特徵: | Mechanical Indicator, Test Button |
| 展開說明: | General Purpose Relay 3PDT (3 Form C) 60VDC Coil Socketable |
| 描述: | RELAY GEN PURPOSE 3PDT 16A 60V |
| 觸點額定值（電流）: | 16A |
| 觸點材料: | Silver Cadmium Oxide (AgCdO) |
| 聯繫表: | 3PDT (3 Form C) |
| 線圈電壓: | 60VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 2.2 kOhms |
| 線圈功率: | 1.6 W |
| 線圈電流: | 26.7mA |
| Email: | [email protected] |
