購買 RM607024與BYCHPS
購買即有保證

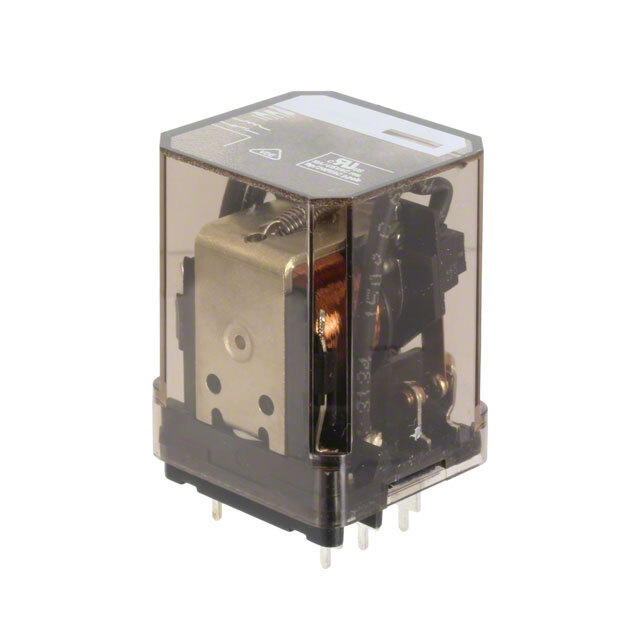

RM607024
- 型號:
- RM607024
- 描述:
- RELAY GEN PURPOSE 3PST 10A 24V
- 無鉛狀態/ RoHS狀態:
- 含鉛/符合RoHS
- 庫存數量:
- 12932 Pieces
- 數據表:
- RM607024.pdf
簡單介紹
BYCHIPS是 RM607024的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的RM607024購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 18 VDC |
|---|---|
| 關閉電壓（最小）: | 2.4 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 400VAC - Max |
| 系列: | RM, SCHRACK |
| 發布時間: | 5ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 1393844-6 1393844-6-ND 13938446 PB1571 RM607024-ND |
| 工作溫度: | -45°C ~ 60°C |
| 操作時間: | 20ms |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 16 Weeks |
| 製造商零件編號: | RM607024 |
| 特徵: | - |
| 展開說明: | General Purpose Relay 3PST (3 Form A) 24VDC Coil Through Hole |
| 描述: | RELAY GEN PURPOSE 3PST 10A 24V |
| 觸點額定值（電流）: | 10A |
| 觸點材料: | Silver Cadmium Oxide (AgCdO) |
| 聯繫表: | 3PST (3 Form A) |
| 線圈電壓: | 24VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 345 Ohms |
| 線圈功率: | 1.7 W |
| 線圈電流: | 70.8mA |
| Email: | [email protected] |
