購買 RM203012與BYCHPS
購買即有保證

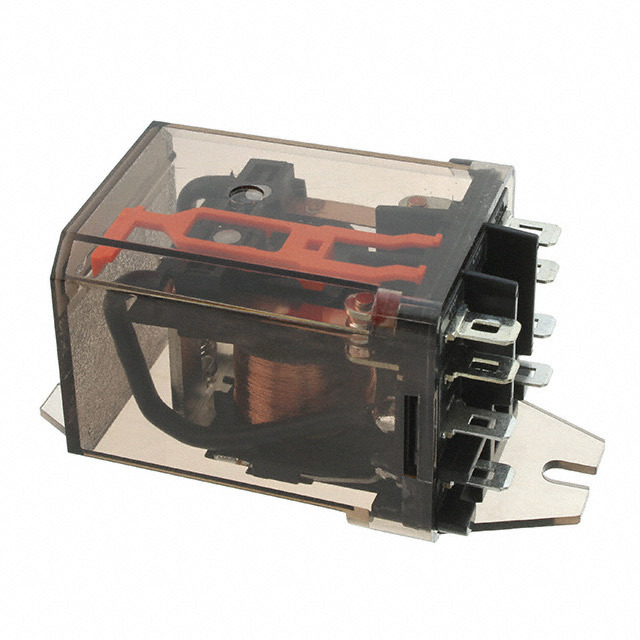

RM203012
- 型號:
- RM203012
- 描述:
- RELAY GEN PURPOSE DPDT 16A 12V
- 無鉛狀態/ RoHS狀態:
- 含鉛/符合RoHS
- 庫存數量:
- 18610 Pieces
- 數據表:
- RM203012.pdf
簡單介紹
BYCHIPS是 RM203012的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的RM203012購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 9 VDC |
|---|---|
| 關閉電壓（最小）: | 1.2 VDC |
| 端接類型: | Quick Connect - 0.187" (4.7mm) |
| 切換電壓: | 440VAC - Max |
| 系列: | RM, SCHRACK |
| 發布時間: | 10ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 1-1393148-5 PB1994 RM203012-ND |
| 工作溫度: | -45°C ~ 70°C |
| 操作時間: | 15ms |
| 安裝類型: | Chassis Mount |
| 製造商標準交貨期: | 18 Weeks |
| 製造商零件編號: | RM203012 |
| 特徵: | Mechanical Indicator |
| 展開說明: | General Purpose Relay DPDT (2 Form C) 12VDC Coil Chassis Mount |
| 描述: | RELAY GEN PURPOSE DPDT 16A 12V |
| 觸點額定值（電流）: | 16A |
| 觸點材料: | Silver Cadmium Oxide (AgCdO) |
| 聯繫表: | DPDT (2 Form C) |
| 線圈電壓: | 12VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 110 Ohms |
| 線圈功率: | 1.3 W |
| 線圈電流: | 108.3mA |
| Email: | [email protected] |
