購買 RLF7030T-3R3M4R1與BYCHPS
購買即有保證
RLF7030T-3R3M4R1
- 型號:
- RLF7030T-3R3M4R1
- 製造商:
- TDK Corporation
- 描述:
- FIXED IND 3.3UH 4.1A 17.4 MOHM
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 12938 Pieces
簡單介紹
BYCHIPS是 RLF7030T-3R3M4R1的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的RLF7030T-3R3M4R1購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 類型: | Wirewound |
|---|---|
| 公差: | ±20% |
| 供應商設備封裝: | - |
| 尺寸/尺寸: | 0.287" L x 0.268" W (7.30mm x 6.80mm) |
| 屏蔽: | Shielded |
| 系列: | RLF |
| 評級: | - |
| Q因子@頻率: | - |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | Nonstandard |
| 其他名稱: | 445-2963-2 RLF7030T-3R3M4R1-ND RLF7030T3R3M4R1 |
| 工作溫度: | -40°C ~ 125°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 材料 - 核: | Ferrite |
| 製造商標準交貨期: | 14 Weeks |
| 製造商零件編號: | RLF7030T-3R3M4R1 |
| 電感: | 3.3µH |
| 高度 - 座高（最大）: | 0.126" (3.20mm) |
| 頻率 - 測試: | 100kHz |
| 頻率 - 自諧振: | - |
| 展開說明: | 3.3µH Shielded Wirewound Inductor 4.1A 20.88 mOhm Max Nonstandard |
| 描述: | FIXED IND 3.3UH 4.1A 17.4 MOHM |
| 直流電阻（DCR）: | 20.88 mOhm Max |
| 目前評級: | 4.1A |
| 電流 - 飽和: | 4.4A |
| Email: | [email protected] |
RLF7030T-3R3M4R1的相似型號
| 圖片 | 型號 | 製造商 | 描述 | 查看 |
|---|---|---|---|---|
 |
RLF7030T-4R7M3R4-T | TDK Corporation | FIXED IND 4.7UH 3.4A 21.3 MOHM | 在線詢價 |
|

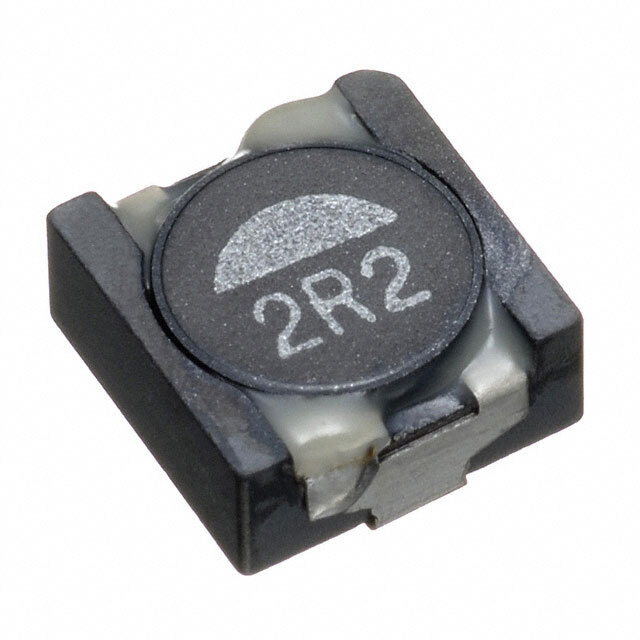

RLF7030T-2R2M5R4 | TDK Corporation | FIXED IND 2.2UH 5.4A 10 MOHM SMD | 在線詢價 |
|
RLF7030T-4R7M3R4 | TDK Corporation | FIXED IND 4.7UH 3.4A 26 MOHM SMD | 在線詢價 |
|
RLF7030T-1R0N6R4-T | TDK Corporation | FIXED IND 1UH 6.4A 8.76 MOHM SMD | 在線詢價 |
|
RLF7030T-3R3M4R1-T | TDK Corporation | FIXED IND 3.3UH 4.1A 20.88 MOHM | 在線詢價 |
|
RLF7030T-1R5N6R1-T | TDK Corporation | FIXED IND 1.5UH 6.1A 9.6 MOHM | 在線詢價 |
|
RLF7030T-6R8M2R8 | TDK Corporation | FIXED IND 6.8UH 2.8A 37.3 MOHM | 在線詢價 |
|
RLF7030T-1R5N6R1 | TDK Corporation | FIXED IND 1.5UH 6.1A 8 MOHM SMD | 在線詢價 |
|
RLF7030T-6R8M2R8-T | TDK Corporation | FIXED IND 6.8UH 2.8A 44.76 MOHM | 在線詢價 |
|
RLF7030T-1R0N6R4 | TDK Corporation | FIXED IND 1UH 6.4A 7.3 MOHM SMD | 在線詢價 |
|
RLF7030T-2R2M5R4-T | TDK Corporation | FIXED IND 2.2UH 5.4A 12 MOHM SMD | 在線詢價 |
