購買 RD6CAH2600與BYCHPS
購買即有保證

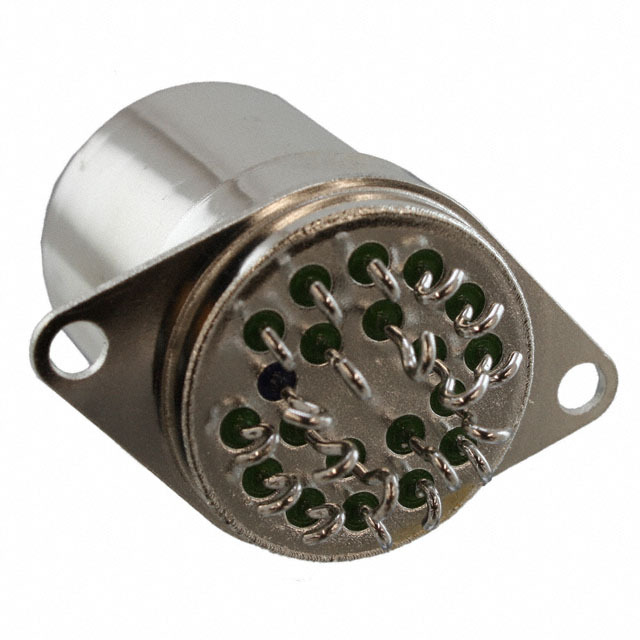

RD6CAH2600
- 型號:
- RD6CAH2600
- 描述:
- RELAY GEN PURPOSE 6PDT 2A 26.5V
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 15625 Pieces
- 數據表:
- RD6CAH2600.pdf
簡單介紹
BYCHIPS是 RD6CAH2600的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的RD6CAH2600購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 13 VDC |
|---|---|
| 關閉電壓（最小）: | 2.3 VDC |
| 端接類型: | Solder Hook |
| 切換電壓: | 28VDC - Nom |
| 系列: | Military, MIL-R-5757/1, RD, CII |
| 發布時間: | 15ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 1122-1091 1122-1091-MIL 1617048-9 A101649 A101649-ND M5757/1-021 |
| 工作溫度: | -65°C ~ 125°C |
| 操作時間: | 15ms |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 30 Weeks |
| 製造商零件編號: | RD6CAH2600 |
| 特徵: | - |
| 展開說明: | General Purpose Relay 6PDT (6 Form C) Chassis Mount |
| 描述: | RELAY GEN PURPOSE 6PDT 2A 26.5V |
| 觸點額定值（電流）: | 2A |
| 觸點材料: | - |
| 聯繫表: | 6PDT (6 Form C) |
| 線圈電壓: | 26.5VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 200 Ohms |
| 線圈功率: | - |
| 線圈電流: | 132.5mA |
| Email: | [email protected] |
