購買 RB8522-16-3M0與BYCHPS
購買即有保證

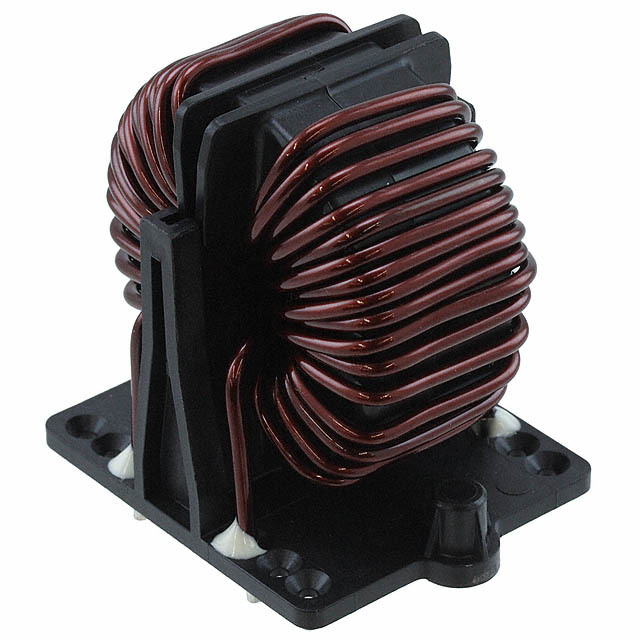

RB8522-16-3M0
- 型號:
- RB8522-16-3M0
- 描述:
- COMMON MODE CHOKE 3MH 16A 2LN TH
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 13175 Pieces
簡單介紹
BYCHIPS是 RB8522-16-3M0的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的RB8522-16-3M0購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓 - 直流: | 1000V (1kV) |
|---|---|
| 額定電壓 - AC: | 600V |
| 尺寸/尺寸: | 1.969" L x 1.709" W (50.0mm x 43.4mm) |
| 系列: | RB |
| 評級: | - |
| 封装: | Bulk |
| 封裝/箱體: | Vertical, 8 PC Pin |
| 其他名稱: | 811860 817-1677 RB8522163M0 |
| 工作溫度: | -40°C ~ 125°C |
| 行數: | 2 |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 10 Weeks |
| 製造商零件編號: | RB8522-16-3M0 |
| 電感@頻率: | 3mH @ 400Hz |
| 頻率對應阻抗: | - |
| 高度（最大）: | 2.283" (58.00mm) |
| 過濾器類型: | Power Line |
| 特徵: | - |
| 展開說明: | 3mH @ 400Hz 2 Line Common Mode Choke Through Hole 16A DCR 8.4 mOhm (Typ) |
| 描述: | COMMON MODE CHOKE 3MH 16A 2LN TH |
| 直流電阻（DCR）（最大值）: | 8.4 mOhm (Typ) |
| 卡厚度（mm）: | 16A |
| 認證: | - |
| Email: | [email protected] |
