購買 R10S-E1Y1-J1.0K與BYCHPS
購買即有保證

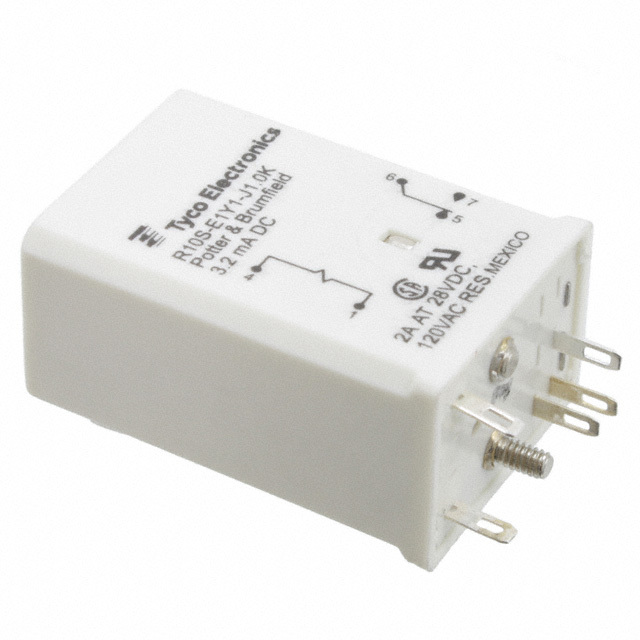

R10S-E1Y1-J1.0K
- 型號:
- R10S-E1Y1-J1.0K
- 描述:
- RELAY GENERAL PURPOSE SPDT 3A 5V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 19360 Pieces
簡單介紹
BYCHIPS是 R10S-E1Y1-J1.0K的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的R10S-E1Y1-J1.0K購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 3.25 VDC |
|---|---|
| 關閉電壓（最小）: | - |
| 端接類型: | Plug In |
| 切換電壓: | 120VAC, 30VDC - Max |
| 系列: | R10 |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 7-1393769-0 7-1393769-0-ND 713937690 PB1557 R10S-E1Y1-J1.0K-ND |
| 工作溫度: | -55°C ~ 75°C |
| 安裝類型: | Socketable |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 11 Weeks |
| 製造商零件編號: | R10S-E1Y1-J1.0K |
| 特徵: | - |
| 展開說明: | General Purpose Relay SPDT (1 Form C) 5VDC Coil Socketable |
| 描述: | RELAY GENERAL PURPOSE SPDT 3A 5V |
| 觸點額定值（電流）: | 3A |
| 觸點材料: | Silver (Ag) |
| 聯繫表: | SPDT (1 Form C) |
| 線圈電壓: | 5VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 1 kOhms |
| 線圈功率: | - |
| 線圈電流: | 3.2mA |
| Email: | [email protected] |
