購買 PTGL18AR6R0H8B72B0與BYCHPS
購買即有保證

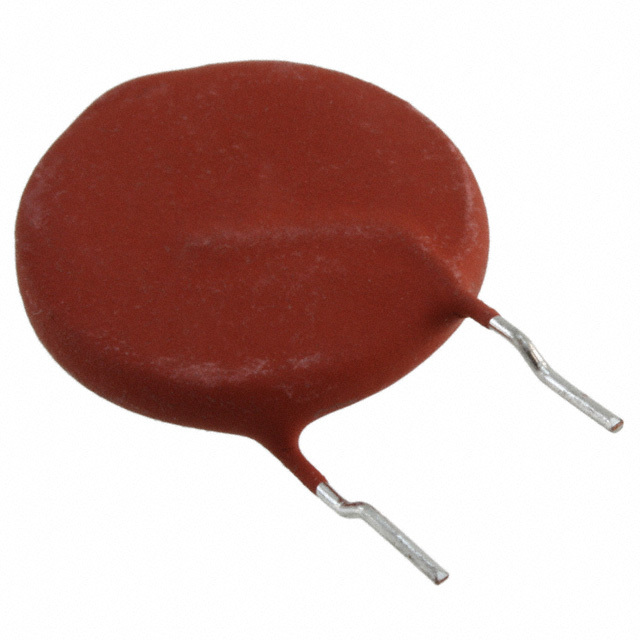

PTGL18AR6R0H8B72B0
- 型號:
- PTGL18AR6R0H8B72B0
- 描述:
- THERMISTOR PTC 265V 6 OHM 120C
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18584 Pieces
簡單介紹
BYCHIPS是 PTGL18AR6R0H8B72B0的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的PTGL18AR6R0H8B72B0購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 最大: | 265V |
|---|---|
| 類型: | Ceramic |
| 跳閘時間: | - |
| 厚度（最大）: | - |
| 尺寸/尺寸: | 0.728" Dia x 0.217" W (18.50mm x 5.50mm) |
| 系列: | POSISTOR®, PTGL |
| 電阻 - 跳閘（R1）（最大）: | - |
| 電阻 - 初始（Ri）（最小值）: | - |
| 電阻 - 25°C（典型值）: | 6 Ohm |
| 評級: | - |
| 封装: | Bulk |
| 封裝/箱體: | Radial, Disc |
| 其他名稱: | 490-7097 PTGL18AR6R0H8B72B0-ND |
| 工作溫度: | -10°C ~ 60°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 11 Weeks |
| 製造商零件編號: | PTGL18AR6R0H8B72B0 |
| 引線間距: | 0.295" (7.50mm) |
| 高度 - 座高（最大）: | 0.965" (24.50mm) |
| 展開說明: | PTC Resettable Fuse 265V Ih Through Hole Radial, Disc |
| 描述: | THERMISTOR PTC 265V 6 OHM 120C |
| 電流 - 跳閘（It）: | 715mA |
| 電流 - 最大: | 4.1A |
| 電流 - 維持（Ih）（最大值）: | 380mA |
| 認證: | UL |
| Email: | [email protected] |
