購買 PTGL09AR9R4H4B51B0與BYCHPS
購買即有保證

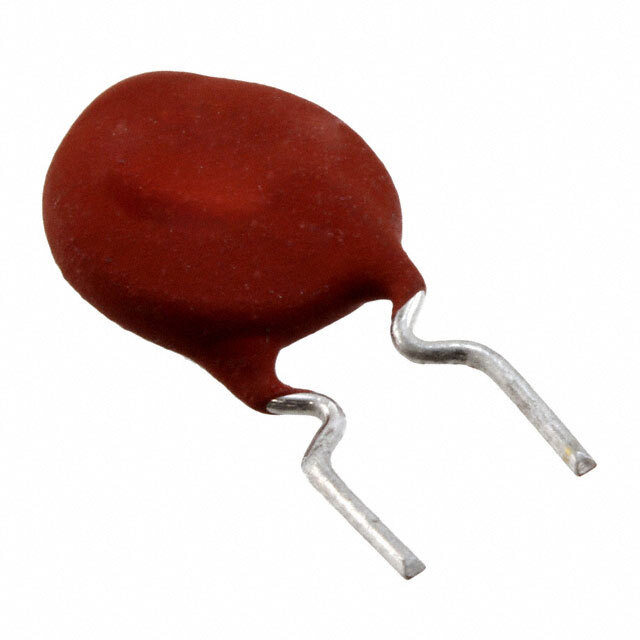

PTGL09AR9R4H4B51B0
- 型號:
- PTGL09AR9R4H4B51B0
- 描述:
- THERMISTOR PTC 80V 9.4 OHM 120C
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17584 Pieces
簡單介紹
BYCHIPS是 PTGL09AR9R4H4B51B0的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的PTGL09AR9R4H4B51B0購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 最大: | 80V |
|---|---|
| 類型: | Ceramic |
| 跳閘時間: | - |
| 厚度（最大）: | - |
| 尺寸/尺寸: | 0.374" Dia x 0.177" W (9.50mm x 4.50mm) |
| 系列: | POSISTOR®, PTGL |
| 電阻 - 跳閘（R1）（最大）: | - |
| 電阻 - 初始（Ri）（最小值）: | - |
| 電阻 - 25°C（典型值）: | 9.4 Ohm |
| 評級: | - |
| 封装: | Bulk |
| 封裝/箱體: | Radial, Disc |
| 其他名稱: | 490-8516 PTGL09AR9R4H4B51B0-ND |
| 工作溫度: | -10°C ~ 60°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 11 Weeks |
| 製造商零件編號: | PTGL09AR9R4H4B51B0 |
| 引線間距: | 0.197" (5.00mm) |
| 高度 - 座高（最大）: | 0.610" (15.50mm) |
| 展開說明: | PTC Resettable Fuse 80V Ih Through Hole Radial, Disc |
| 描述: | THERMISTOR PTC 80V 9.4 OHM 120C |
| 電流 - 跳閘（It）: | 450mA |
| 電流 - 最大: | 3A |
| 電流 - 維持（Ih）（最大值）: | 240mA |
| 認證: | - |
| Email: | [email protected] |
