購買 PT2L7RC4與BYCHPS
購買即有保證

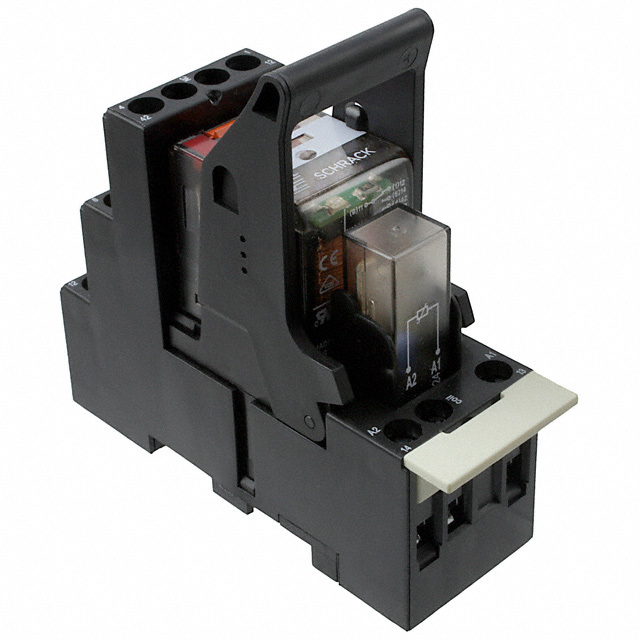

PT2L7RC4
- 型號:
- PT2L7RC4
- 描述:
- RELAY GEN PURPOSE DPDT 12A 24V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 13741 Pieces
- 數據表:
- PT2L7RC4.pdf
簡單介紹
BYCHIPS是 PT2L7RC4的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的PT2L7RC4購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 19.2 VAC |
|---|---|
| 關閉電壓（最小）: | 7.2 VAC |
| 端接類型: | Screw Terminal |
| 切換電壓: | 400VAC - Max |
| 系列: | PT, SCHRACK |
| 繼電器類型: | General Purpose with Socket |
| 封装: | Bulk |
| 其他名稱: | 9-1415534-0 9-1415534-0-ND 914155340 PB1501 PT2L7RC4-ND |
| 工作溫度: | -40°C ~ 70°C |
| 安裝類型: | DIN Rail |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 21 Weeks |
| 製造商零件編號: | PT2L7RC4 |
| 特徵: | LED Indicator, Mechanical Indicator, Test Button |
| 展開說明: | General Purpose with Socket Relay DPDT (2 Form C) 24VAC Coil DIN Rail |
| 描述: | RELAY GEN PURPOSE DPDT 12A 24V |
| 觸點額定值（電流）: | 12A |
| 觸點材料: | Silver Nickel (AgNi) |
| 聯繫表: | DPDT (2 Form C) |
| 線圈電壓: | 24VAC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 192 Ohms |
| 線圈功率: | 1 VA |
| Email: | [email protected] |
