購買 PG0926.113NL與BYCHPS
購買即有保證

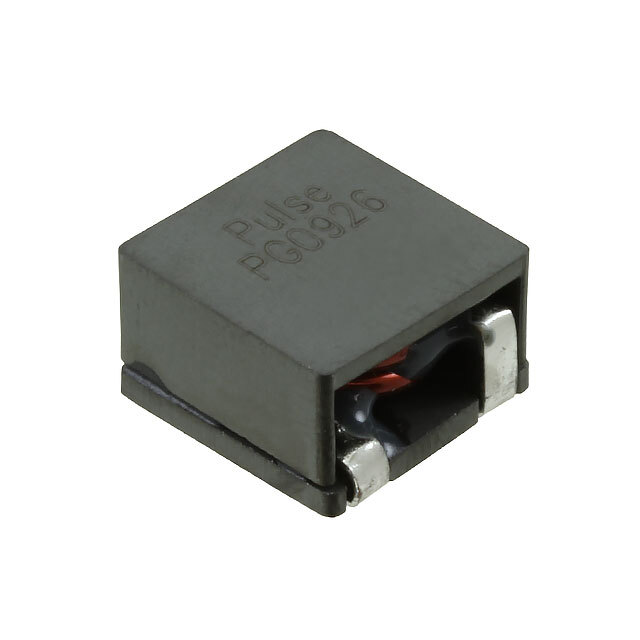

PG0926.113NL
- 型號:
- PG0926.113NL
- 描述:
- FIXED IND 11.5UH 9.5A 12 MOHM
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17777 Pieces
- 數據表:
- PG0926.113NL.pdf
簡單介紹
BYCHIPS是 PG0926.113NL的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的PG0926.113NL購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 類型: | Wirewound |
|---|---|
| 公差: | ±20% |
| 供應商設備封裝: | - |
| 尺寸/尺寸: | 0.528" L x 0.528" W (13.40mm x 13.40mm) |
| 屏蔽: | Unshielded |
| 系列: | PG0926NL |
| 評級: | - |
| Q因子@頻率: | - |
| 封装: | Tray |
| 封裝/箱體: | Nonstandard |
| 其他名稱: | 553-3141 |
| 工作溫度: | -40°C ~ 130°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 材料 - 核: | - |
| 製造商標準交貨期: | 10 Weeks |
| 製造商零件編號: | PG0926.113NL |
| 電感: | 11.5µH |
| 高度 - 座高（最大）: | 0.315" (8.00mm) |
| 頻率 - 自諧振: | - |
| 展開說明: | 11.5µH Unshielded Wirewound Inductor 9.5A 12 mOhm Nonstandard |
| 描述: | FIXED IND 11.5UH 9.5A 12 MOHM |
| 直流電阻（DCR）: | 12 mOhm |
| 目前評級: | 9.5A |
| 電流 - 飽和: | 8A |
| Email: | [email protected] |
