購買 PEH169MJ5100QB2與BYCHPS
購買即有保證

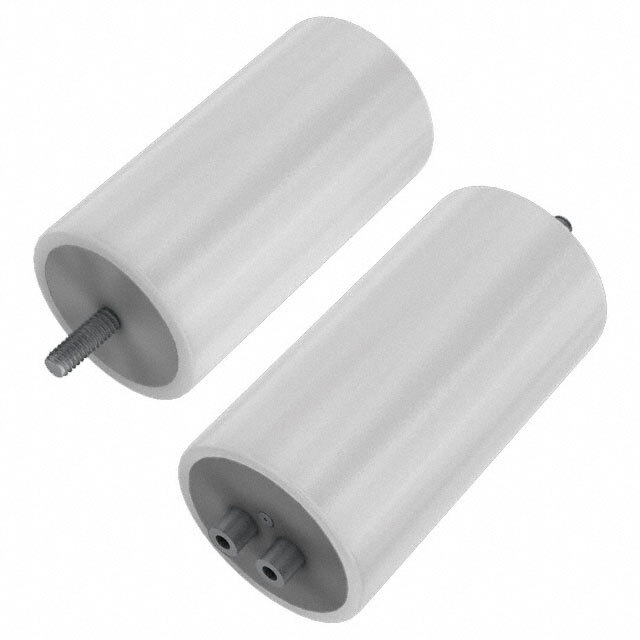

PEH169MJ5100QB2
- 型號:
- PEH169MJ5100QB2
- 製造商:
- KEMET
- 描述:
- CAP ALUM 10000UF 63V SCREW
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 12807 Pieces
簡單介紹
BYCHIPS是 PEH169MJ5100QB2的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的PEH169MJ5100QB2購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓: | 63V |
|---|---|
| 公差: | -10%, +30% |
| 表面貼裝佔地面積: | - |
| 尺寸/尺寸: | 2.032" Dia (51.60mm) |
| 系列: | PEH169 |
| 紋波電流: | 9.9A @ 100Hz |
| 極化: | Polar |
| 封装: | Bulk |
| 封裝/箱體: | Radial, Can - Screw Terminals |
| 其他名稱: | 399-5645 A472MK103Q063A |
| 工作溫度: | -40°C ~ 105°C |
| 安裝類型: | Chassis Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 11 Weeks |
| 製造商零件編號: | PEH169MJ5100QB2 |
| 壽命@溫度。: | 2000 Hrs @ 105°C |
| 引線間距: | 0.866" (22.00mm) |
| 阻抗: | 8 mOhm |
| 高度 - 座高（最大）: | 3.878" (98.50mm) |
| 展開說明: | 10000µF 63V Aluminum Capacitors Radial, Can - Screw Terminals 13 mOhm @ 100Hz 2000 Hrs @ 105°C |
| ESR（等效串聯電阻）: | 13 mOhm @ 100Hz |
| 描述: | CAP ALUM 10000UF 63V SCREW |
| 電容: | 10000µF |
| 應用: | General Purpose |
| Email: | [email protected] |
