購買 PE-65855NL與BYCHPS
購買即有保證

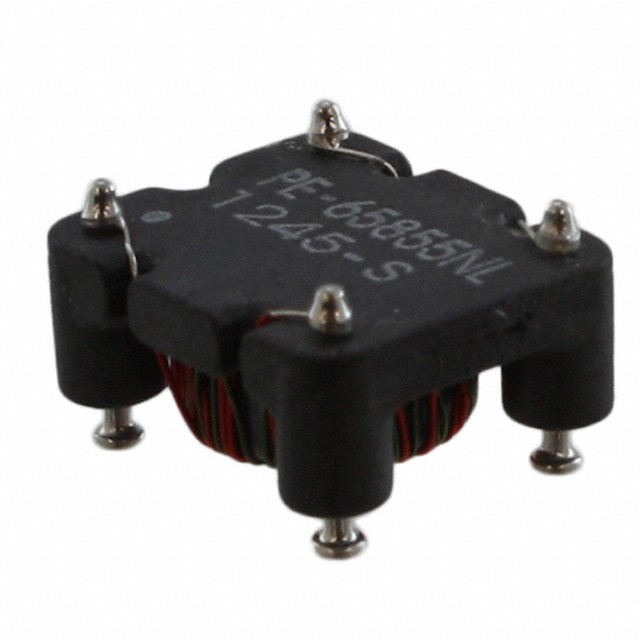

PE-65855NL
- 型號:
- PE-65855NL
- 描述:
- COMMON MODE CHOKE 2LN SMD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16671 Pieces
- 數據表:
- PE-65855NL.pdf
簡單介紹
BYCHIPS是 PE-65855NL的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的PE-65855NL購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓 - 直流: | - |
|---|---|
| 額定電壓 - AC: | - |
| 尺寸/尺寸: | 0.400" L x 0.345" W (10.16mm x 8.76mm) |
| 系列: | - |
| 評級: | - |
| 封装: | Tube |
| 封裝/箱體: | Horizontal, 4 PC Pad |
| 其他名稱: | 553-1897-5 PE-65855NL-ND PE65855NL |
| 工作溫度: | - |
| 行數: | 2 |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 11 Weeks |
| 製造商零件編號: | PE-65855NL |
| 電感@頻率: | - |
| 頻率對應阻抗: | - |
| 高度（最大）: | 0.250" (6.35mm) |
| 過濾器類型: | Signal Line |
| 特徵: | - |
| 展開說明: | 2 Line Common Mode Choke Surface Mount DCR 1 Ohm |
| 描述: | COMMON MODE CHOKE 2LN SMD |
| 直流電阻（DCR）（最大值）: | 1 Ohm |
| 卡厚度（mm）: | - |
| 認證: | - |
| Email: | [email protected] |
