購買 PE-53933NL與BYCHPS
購買即有保證

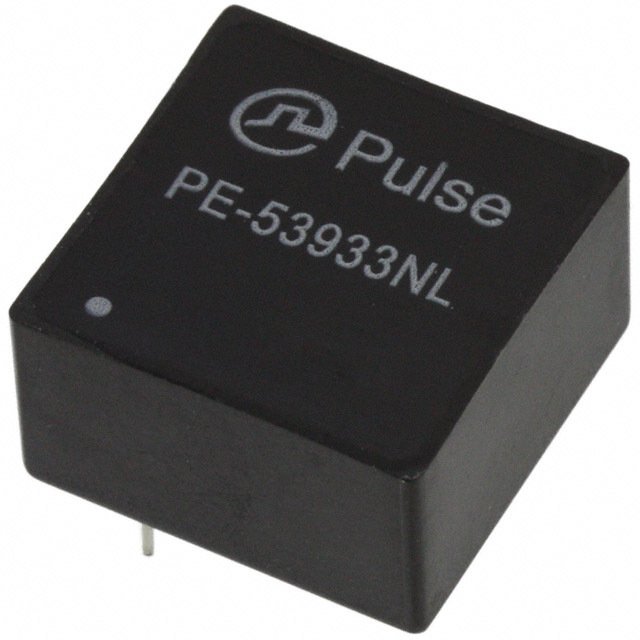

PE-53933NL
- 型號:
- PE-53933NL
- 描述:
- FIXED IND 24UH 2.74A 70 MOHM TH
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 13908 Pieces
- 數據表:
- PE-53933NL.pdf
簡單介紹
BYCHIPS是 PE-53933NL的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的PE-53933NL購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 類型: | Toroidal |
|---|---|
| 公差: | ±20% |
| 供應商設備封裝: | - |
| 尺寸/尺寸: | 0.635" L x 0.635" W (16.13mm x 16.13mm) |
| 屏蔽: | Shielded |
| 系列: | LP |
| 評級: | - |
| Q因子@頻率: | - |
| 封装: | Tray |
| 封裝/箱體: | Radial |
| 其他名稱: | 553-1692 PE-53933NL-ND PE53933NL |
| 工作溫度: | -40°C ~ 130°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 材料 - 核: | - |
| 製造商標準交貨期: | 9 Weeks |
| 製造商零件編號: | PE-53933NL |
| 電感: | 24µH |
| 高度 - 座高（最大）: | 0.365" (9.27mm) |
| 頻率 - 自諧振: | - |
| 展開說明: | 24µH Shielded Toroidal Inductor 2.74A 70 mOhm Radial |
| 描述: | FIXED IND 24UH 2.74A 70 MOHM TH |
| 直流電阻（DCR）: | 70 mOhm |
| 目前評級: | 2.74A |
| 電流 - 飽和: | - |
| Email: | [email protected] |
