購買 PE-53717與BYCHPS
購買即有保證

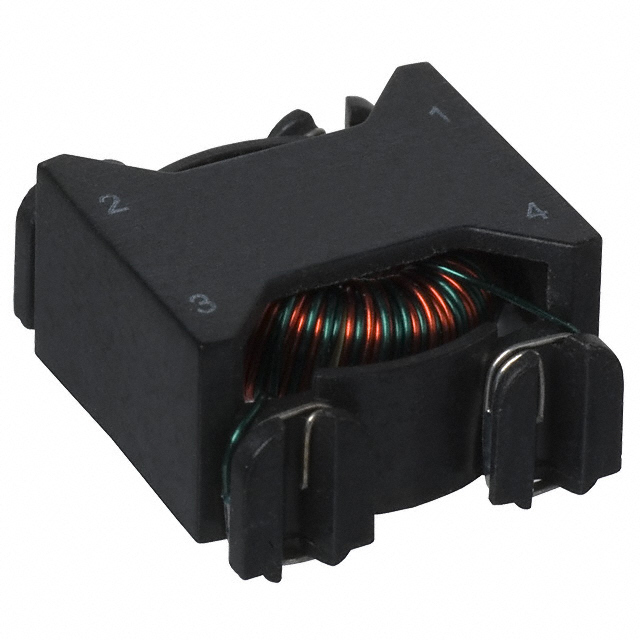

PE-53717
- 型號:
- PE-53717
- 描述:
- FIXED IND 43.6UH 1.1A 309 MOHM
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 18530 Pieces
- 數據表:
- PE-53717.pdf
簡單介紹
BYCHIPS是 PE-53717的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的PE-53717購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 類型: | Toroidal |
|---|---|
| 公差: | - |
| 供應商設備封裝: | - |
| 尺寸/尺寸: | 0.645" L x 0.560" W (16.38mm x 14.22mm) |
| 屏蔽: | Unshielded |
| 系列: | SLIC |
| 評級: | - |
| Q因子@頻率: | - |
| 封装: | Bulk |
| 封裝/箱體: | Nonstandard |
| 其他名稱: | 553-1154 PE53717 |
| 工作溫度: | -40°C ~ 130°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 材料 - 核: | - |
| 製造商零件編號: | PE-53717 |
| 電感: | 43.6µH |
| 高度 - 座高（最大）: | 0.350" (8.89mm) |
| 頻率 - 自諧振: | - |
| 展開說明: | 43.6µH Unshielded Toroidal Inductor 1.1A 309 mOhm Max Nonstandard |
| 描述: | FIXED IND 43.6UH 1.1A 309 MOHM |
| 直流電阻（DCR）: | 309 mOhm Max |
| 目前評級: | 1.1A |
| 電流 - 飽和: | - |
| Email: | [email protected] |
