購買 PE-51511NL與BYCHPS
購買即有保證
PE-51511NL
- 型號:
- PE-51511NL
- 描述:
- FIXED IND 43UH 10A 18 MOHM TH
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 12587 Pieces
- 數據表:
- PE-51511NL.pdf
簡單介紹
BYCHIPS是 PE-51511NL的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的PE-51511NL購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 類型: | Toroidal |
|---|---|
| 公差: | - |
| 供應商設備封裝: | - |
| 尺寸/尺寸: | 1.600" L x 0.800" W (40.64mm x 20.32mm) |
| 屏蔽: | Unshielded |
| 系列: | - |
| 評級: | - |
| Q因子@頻率: | - |
| 封装: | Tray |
| 封裝/箱體: | Radial |
| 工作溫度: | -40°C ~ 130°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 材料 - 核: | - |
| 製造商標準交貨期: | 9 Weeks |
| 製造商零件編號: | PE-51511NL |
| 電感: | 43µH |
| 高度 - 座高（最大）: | 1.720" (43.68mm) |
| 頻率 - 測試: | 50kHz |
| 頻率 - 自諧振: | - |

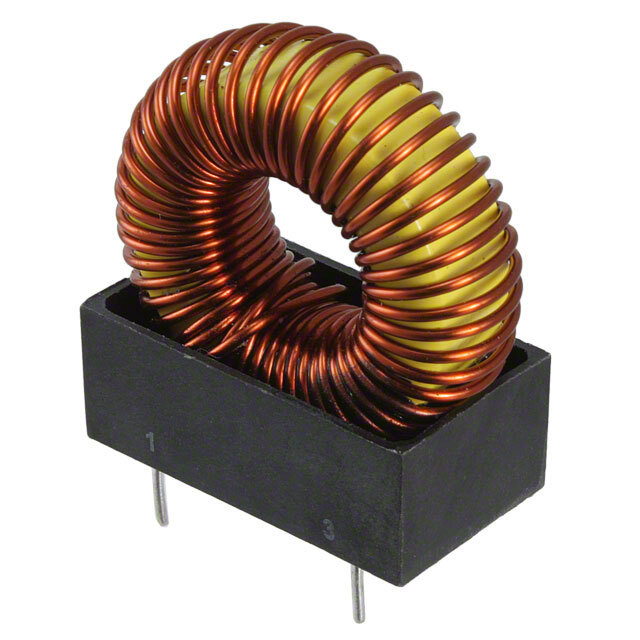

| 展開說明: | 43µH Unshielded Toroidal Inductor 10A 18 mOhm Max Radial |
| 描述: | FIXED IND 43UH 10A 18 MOHM TH |
| 直流電阻（DCR）: | 18 mOhm Max |
| 目前評級: | 10A |
| 電流 - 飽和: | - |
| Email: | [email protected] |
