購買 P0751.683T與BYCHPS
購買即有保證

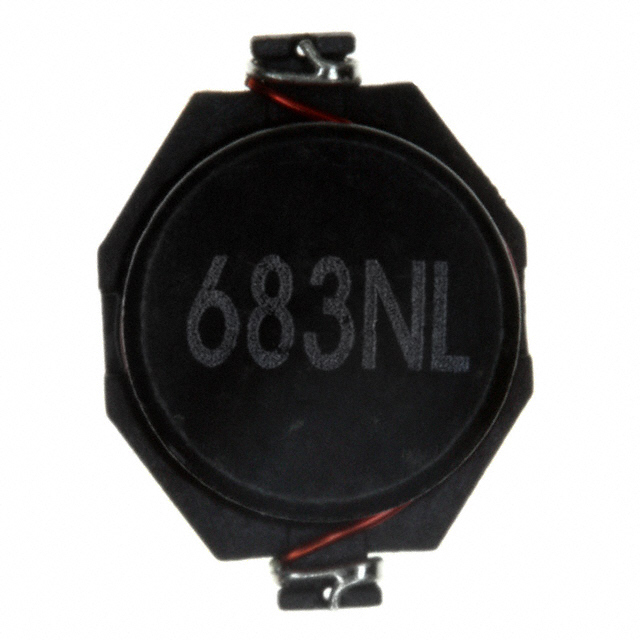

P0751.683T
- 型號:
- P0751.683T
- 描述:
- FIXED IND 68UH 1.4A 240 MOHM SMD
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 18808 Pieces
- 數據表:
- P0751.683T.pdf
簡單介紹
BYCHIPS是 P0751.683T的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的P0751.683T購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 類型: | Wirewound |
|---|---|
| 公差: | ±20% |
| 供應商設備封裝: | - |
| 尺寸/尺寸: | 0.510" L x 0.370" W (12.95mm x 9.40mm) |
| 屏蔽: | Unshielded |
| 系列: | P0751 |
| 評級: | - |
| Q因子@頻率: | - |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | Nonstandard |
| 工作溫度: | -40°C ~ 130°C |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 材料 - 核: | - |
| 製造商零件編號: | P0751.683T |
| 電感: | 68µH |
| 高度 - 座高（最大）: | 0.215" (5.46mm) |
| 頻率 - 測試: | 100kHz |
| 頻率 - 自諧振: | - |
| 展開說明: | 68µH Unshielded Wirewound Inductor 1.4A 240 mOhm Max Nonstandard |
| 描述: | FIXED IND 68UH 1.4A 240 MOHM SMD |
| 直流電阻（DCR）: | 240 mOhm Max |
| 目前評級: | 1.4A |
| 電流 - 飽和: | 1.4A |
| Email: | [email protected] |
