購買 P0422與BYCHPS
購買即有保證

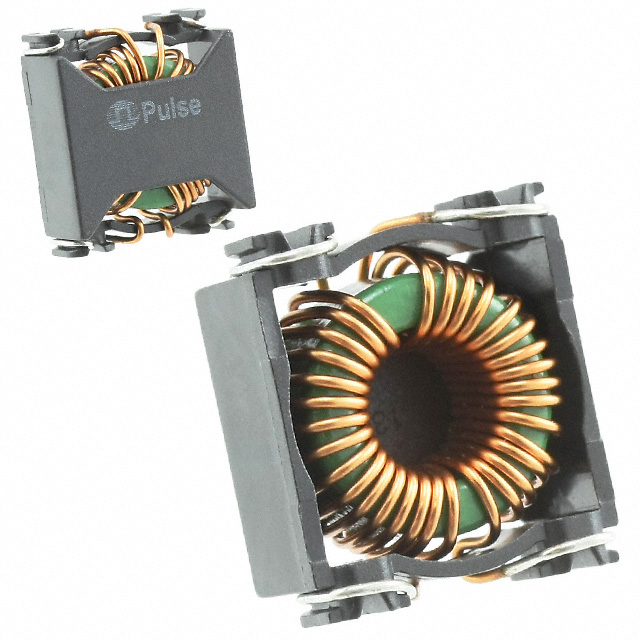

P0422
- 型號:
- P0422
- 描述:
- COMMON MODE CHOKE 4.7A 2LN SMD
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 12078 Pieces
- 數據表:
- P0422.pdf
簡單介紹
BYCHIPS是 P0422的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的P0422購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓 - 直流: | - |
|---|---|
| 額定電壓 - AC: | - |
| 尺寸/尺寸: | 0.770" L x 0.670" W (19.56mm x 17.02mm) |
| 系列: | - |
| 評級: | - |
| 封装: | Tube |
| 封裝/箱體: | Horizontal, 4 PC Pad |
| 工作溫度: | -40°C ~ 120°C |
| 行數: | 2 |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | P0422 |
| 電感@頻率: | - |
| 頻率對應阻抗: | - |
| 高度（最大）: | 0.390" (9.91mm) |
| 過濾器類型: | Power Line |
| 特徵: | - |
| 展開說明: | 2 Line Common Mode Choke Surface Mount 4.7A DCR 40 mOhm |
| 描述: | COMMON MODE CHOKE 4.7A 2LN SMD |
| 直流電阻（DCR）（最大值）: | 40 mOhm |
| 卡厚度（mm）: | 4.7A |
| 認證: | - |
| Email: | [email protected] |
