購買 OSA-SH-205DM5,600與BYCHPS
購買即有保證

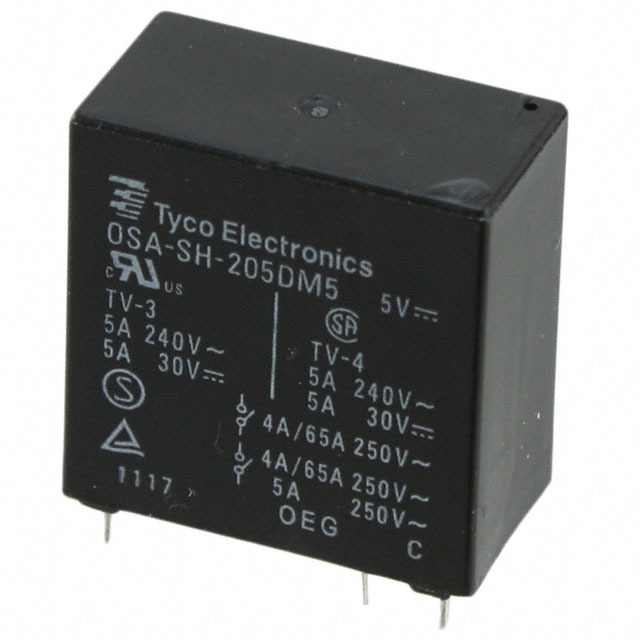

OSA-SH-205DM5,600
- 型號:
- OSA-SH-205DM5,600
- 描述:
- RELAY GENERAL PURPOSE DPST 5A 5V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18413 Pieces
簡單介紹
BYCHIPS是 OSA-SH-205DM5,600的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的OSA-SH-205DM5,600購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 3.75 VDC |
|---|---|
| 關閉電壓（最小）: | 0.25 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 240VAC, 30VDC - Max |
| 系列: | OSA, OEG |
| 發布時間: | 10ms |
| 繼電器類型: | General Purpose |
| 封装: | Tray |
| 其他名稱: | 7-1440004-7 7-1440004-7-ND OSA-SH-205DM5 600 OSA-SH-205DM5 600-ND OSASH205DM5,600 OSASH205DM5600 |
| 工作溫度: | -30°C ~ 60°C |
| 操作時間: | 20ms |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 13 Weeks |
| 製造商零件編號: | OSA-SH-205DM5,600 |
| 特徵: | Sealed - Fully |
| 展開說明: | General Purpose Relay DPST (2 Form A) 5VDC Coil Through Hole |
| 描述: | RELAY GENERAL PURPOSE DPST 5A 5V |
| 觸點額定值（電流）: | 5A |
| 觸點材料: | Silver Tin Oxide (AgSnO) |
| 聯繫表: | DPST (2 Form A) |
| 線圈電壓: | 5VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 47 Ohms |
| 線圈功率: | 540 mW |
| 線圈電流: | 108mA |
| Email: | [email protected] |
