購買 NJM2397F與BYCHPS
購買即有保證

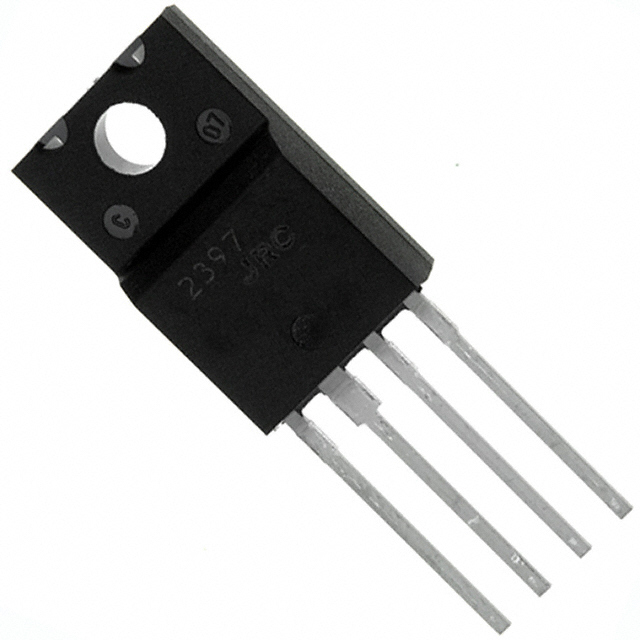

NJM2397F
- 型號:
- NJM2397F
- 描述:
- IC REG LDO ADJ 1.5A TO220F-4
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18525 Pieces
- 數據表:
- NJM2397F.pdf
簡單介紹
BYCHIPS是 NJM2397F的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的NJM2397F購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 輸出: | 1.5 V ~ 20 V |
|---|---|
| 電壓 - 輸入: | 3.8 V ~ 35 V |
| 電壓 - 壓降（標準）: | 0.2V @ 500mA |
| 供應商設備封裝: | TO-220F-4L |
| 系列: | - |
| 穩壓器拓撲結構: | Positive Adjustable |
| 封装: | Tube |
| 封裝/箱體: | TO-220-4 Full Pack |
| 其他名稱: | NJM#2397F NJM#2397F-ND NJM2397F# NJM2397F#-ND |
| 工作溫度: | -40°C ~ 85°C |
| 穩壓器數量: | 1 |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 12 Weeks |
| 製造商零件編號: | NJM2397F |
| 展開說明: | Linear Voltage Regulator IC Positive Adjustable Output 1.5 V ~ 20 V 1.5A TO-220F-4L |
| 描述: | IC REG LDO ADJ 1.5A TO220F-4 |
| 電流 - 輸出: | 1.5A |
| 電流 - 限制（最小）: | - |
| Email: | [email protected] |
