購買 NDFPD1N150CG與BYCHPS
購買即有保證

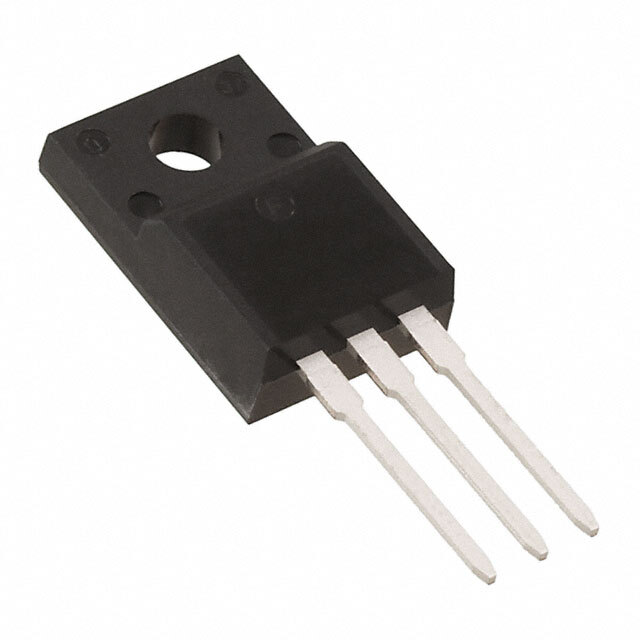

NDFPD1N150CG
- 型號:
- NDFPD1N150CG
- 描述:
- MOSFET N-CH 1500V 100MA TO220
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 13475 Pieces
- 數據表:
- NDFPD1N150CG.pdf
簡單介紹
BYCHIPS是 NDFPD1N150CG的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的NDFPD1N150CG購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | - |
|---|---|
| Vgs（最大）: | ±30V |
| 技術: | MOSFET (Metal Oxide) |
| 供應商設備封裝: | TO-220-3 |
| 系列: | - |
| RDS（ON）（最大值）@標識，柵極電壓: | 150 Ohm @ 50mA, 10V |
| 功率耗散（最大）: | 2W (Ta), 20W (Tc) |
| 封装: | Tube |
| 封裝/箱體: | TO-220-3 Full Pack |
| 其他名稱: | NDFPD1N150CGOS |
| 工作溫度: | 150°C (TJ) |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 6 Weeks |
| 製造商零件編號: | NDFPD1N150CG |
| 輸入電容（Ciss）（Max）@ Vds: | 80pF @ 30V |
| 柵極電荷（Qg）（Max）@ Vgs: | 4.2nC @ 10V |
| FET型: | N-Channel |
| FET特點: | - |
| 展開說明: | N-Channel 1500V (1.5kV) 100mA (Ta) 2W (Ta), 20W (Tc) Through Hole TO-220-3 |
| 驅動電壓（最大Rds開，最小Rds開）: | 10V |
| 漏極至源極電壓（Vdss）: | 1500V (1.5kV) |
| 描述: | MOSFET N-CH 1500V 100MA TO220 |
| 電流 - 25°C連續排水（Id）: | 100mA (Ta) |
| Email: | [email protected] |
