購買 MKP1848S57010JP4B與BYCHPS
購買即有保證

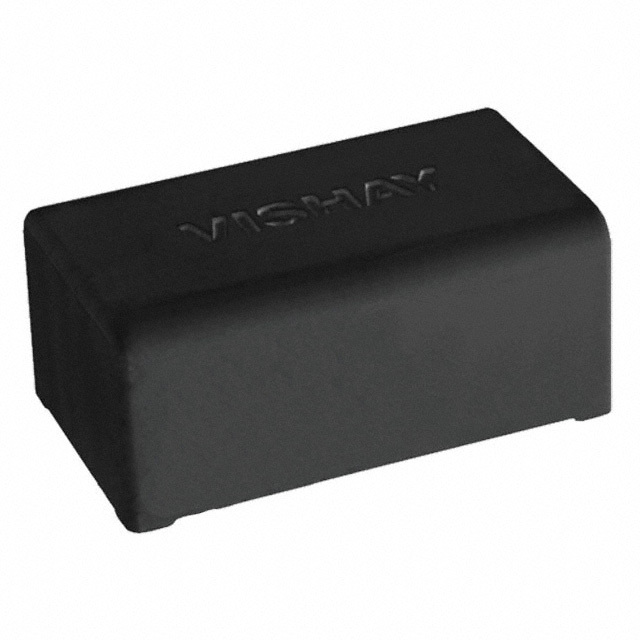

MKP1848S57010JP4B
- 型號:
- MKP1848S57010JP4B
- 描述:
- CAP FILM 7UF 5% 1KVDC RAD 4LD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 15182 Pieces
簡單介紹
BYCHIPS是 MKP1848S57010JP4B的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的MKP1848S57010JP4B購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 額定電壓 - 直流: | 1000V (1kV) |
|---|---|
| 額定電壓 - AC: | - |
| 公差: | ±5% |
| 終止: | PC Pins |
| 尺寸/尺寸: | 1.654" L x 1.300" W (42.00mm x 33.00mm) |
| 系列: | MKP1848S |
| 封装: | Bulk |
| 封裝/箱體: | Radial - 4 Leads |
| 其他名稱: | 1848S57010JP4B |
| 工作溫度: | -40°C ~ 105°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 16 Weeks |
| 製造商零件編號: | MKP1848S57010JP4B |
| 引線間距: | 1.476" (37.50mm) |
| 高度 - 座高（最大）: | 0.591" (15.00mm) |
| 特徵: | Low ESR; Low ESL; Long Life |
| 展開說明: | 7µF ±5% Film Capacitor 1000V (1kV) Polypropylene (PP), Metallized Radial - 4 Leads |
| ESR（等效串聯電阻）: | 8 mOhm |
| 絕緣材料: | Polypropylene (PP), Metallized |
| 描述: | CAP FILM 7UF 5% 1KVDC RAD 4LD |
| 電容: | 7µF |
| 應用: | DC Link, DC Filtering |
| Email: | [email protected] |
MKP1848S57010JP4B的相似型號
| 圖片 | 型號 | 製造商 | 描述 | 查看 |
|---|---|---|---|---|
 |
MKP1848S57010JP4F | Vishay BC Components | CAP FILM 7UF 5% 1KVDC RADIAL | 在線詢價 |
|
MKP1848S57010JP2B | Vishay BC Components | CAP FILM 7UF 5% 1KVDC RADIAL | 在線詢價 |
|
MKP1848S57010JP4C | Vishay BC Components | CAP FILM 7UF 5% 1KVDC RAD 4LD | 在線詢價 |
|
MKP1848S57010JP2F | Vishay BC Components | CAP FILM 7UF 5% 1KVDC RADIAL | 在線詢價 |
|
MKP1848S57070JP4B | Vishay BC Components | CAP FILM 7UF 5% 700VDC RADIAL | 在線詢價 |
|
MKP1848S57010JP2C | Vishay BC Components | CAP FILM 7UF 5% 1KVDC RADIAL | 在線詢價 |
|
MKP1848S57070JP2B | Vishay BC Components | CAP FILM 7UF 5% 700VDC RADIAL | 在線詢價 |
|
MKP1848S57070JP2C | Vishay BC Components | CAP FILM 7UF 5% 700VDC RADIAL | 在線詢價 |
|
MKP1848S57050JK2B | Vishay BC Components | CAP FILM 7UF 5% 500VDC RADIAL | 在線詢價 |
