購買 MC06XSD200FK與BYCHPS
購買即有保證
MC06XSD200FK
- 型號:
- MC06XSD200FK
- 描述:

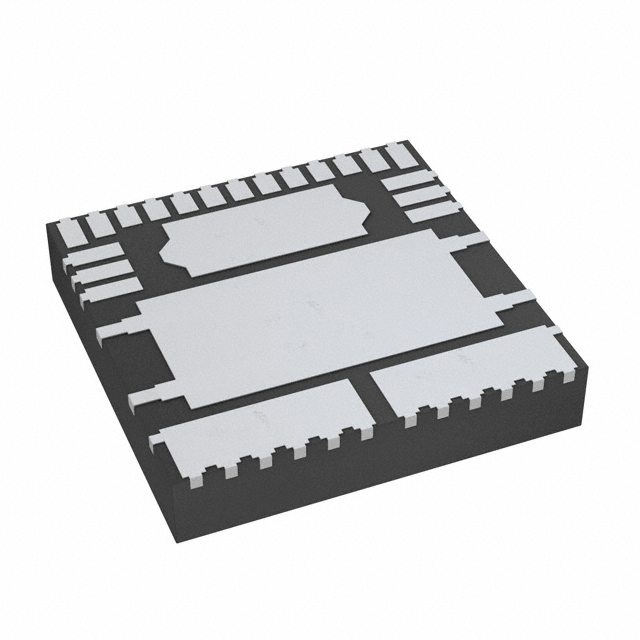

- IC SWITCH HIGH SIDE 23PQFN
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 19167 Pieces
- 數據表:
- MC06XSD200FK.pdf
簡單介紹
BYCHIPS是 MC06XSD200FK的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的MC06XSD200FK購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 電源（Vcc / VDD）: | 3 V ~ 5.5 V |
|---|---|
| 電壓 - 負載: | 8 V ~ 36 V |
| 開關類型: | General Purpose |
| 供應商設備封裝: | 23-PQFN (12x12) |
| 系列: | - |
| （典型）: | 6 mOhm |
| 比率 - 輸入：輸出: | 1:2 |
| 封装: | Tray |
| 封裝/箱體: | 23-PowerQFN |
| 輸出類型: | N-Channel |
| 輸出配置: | High Side |
| 其他名稱: | 934070633557 |
| 工作溫度: | -40°C ~ 150°C (TJ) |
| 輸出端數量: | 2 |
| 濕度敏感度（MSL）: | 3 (168 Hours) |
| 製造商零件編號: | MC06XSD200FK |
| 接口: | SPI |
| 輸入類型: | - |
| 特徵: | Internal PWM, Slew Rate Controlled |
| 故障保護: | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| 描述: | IC SWITCH HIGH SIDE 23PQFN |
| 電流 - 輸出（最大）: | 9A |
| Email: | [email protected] |
