購買 LVR125S-240與BYCHPS
購買即有保證

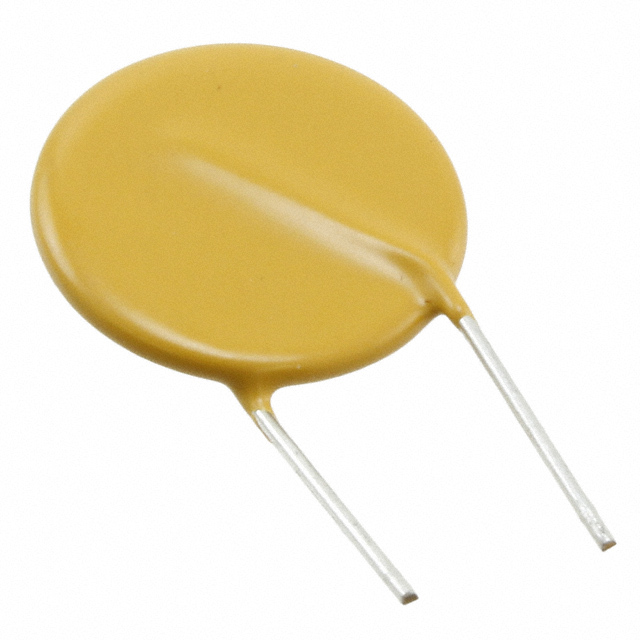

LVR125S-240
- 型號:
- LVR125S-240
- 製造商:
- Littelfuse
- 描述:
- POLYSWITCH PTC RESET 240V 1.25A
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14660 Pieces
簡單介紹
BYCHIPS是 LVR125S-240的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的LVR125S-240購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 最大: | 240V (265V Int) |
|---|---|
| 類型: | Polymeric |
| 跳閘時間: | 23s |
| 厚度（最大）: | - |
| 尺寸/尺寸: | 0.840" Dia x 0.210" W (21.20mm x 5.30mm) |
| 系列: | PolySwitch®, LVR |
| 電阻 - 跳閘（R1）（最大）: | 440 mOhm |
| 電阻 - 初始（Ri）（最小值）: | 165 mOhm |
| 電阻 - 25°C（典型值）: | - |
| 評級: | - |
| 封装: | Bulk |
| 封裝/箱體: | Radial, Disc |
| 其他名稱: | RF3176-000 |
| 工作溫度: | -20°C ~ 85°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 10 Weeks |
| 製造商零件編號: | LVR125S-240 |
| 引線間距: | 0.400" (10.15mm) |
| 高度 - 座高（最大）: | 1.080" (27.40mm) |
| 展開說明: | PTC Resettable Fuse 240V (265V Int) Ih Through Hole Radial, Disc |
| 描述: | POLYSWITCH PTC RESET 240V 1.25A |
| 電流 - 跳閘（It）: | 2.5A |
| 電流 - 最大: | 12.5A |
| 電流 - 維持（Ih）（最大值）: | 1.25A |
| 認證: | CQC, CSA, TUV, UL |
| Email: | [email protected] |
