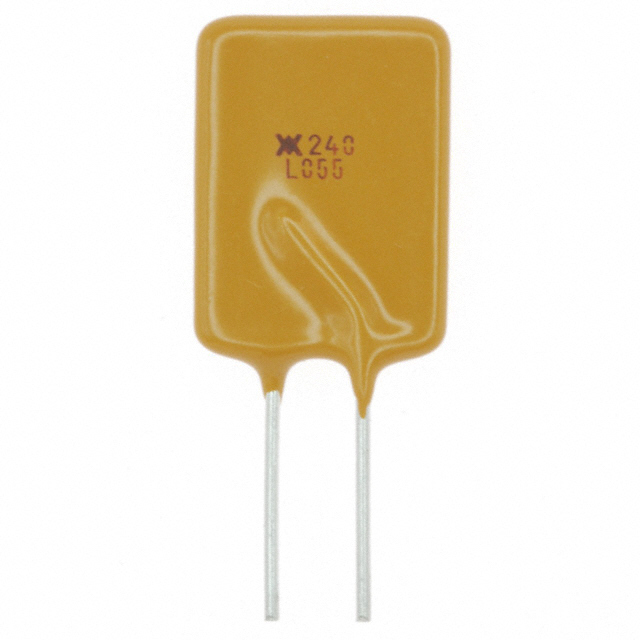

LVR055S
- 型號:
- LVR055S
- 製造商:
- Littelfuse
- 描述:
- POLYSWITCH PTC RESET 0.55A HOLD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 12811 Pieces
簡單介紹
BYCHIPS是 LVR055S的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的LVR055S購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 最大: | 240V (265V Int) |
|---|---|
| 類型: | Polymeric |
| 跳閘時間: | 26s |
| 厚度（最大）: | - |
| 尺寸/尺寸: | 0.551" L x 0.161" W (14.00mm x 4.10mm) |
| 系列: | PolySwitch®, LVR |
| 電阻 - 跳閘（R1）（最大）: | 1.45 Ohm |
| 電阻 - 初始（Ri）（最小值）: | 450 mOhm |
| 電阻 - 25°C（典型值）: | - |
| 評級: | - |
| 封装: | Bulk |
| 封裝/箱體: | Radial, Disc |
| 其他名稱: | 758968-000 |
| 工作溫度: | -20°C ~ 85°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 10 Weeks |
| 製造商零件編號: | LVR055S |
| 引線間距: | 0.200" (5.08mm) |
| 高度 - 座高（最大）: | 0.850" (21.70mm) |
| 展開說明: | PTC Resettable Fuse 240V (265V Int) Ih Through Hole Radial, Disc |
| 描述: | POLYSWITCH PTC RESET 0.55A HOLD |
| 電流 - 跳閘（It）: | 1.25A |
| 電流 - 最大: | 7A |
| 電流 - 維持（Ih）（最大值）: | 550mA |
| 認證: | CQC, CSA, TUV, UL |
| Email: | [email protected] |
LVR055S的相似型號
| 圖片 | 型號 | 製造商 | 描述 | 查看 |
|---|---|---|---|---|
 |
YPCL0035T | Amphenol Advanced Sensors | THERMISTOR PTC OCP 35 OHM 25C | 在線詢價 |
 |
LVR055K | Littelfuse Inc. | POLYSWITCH LVR SERIES 0.55A | 在線詢價 |
 |
AGRF800 | Littelfuse Inc. | POLYSWITCH PTC RESET 8A HOLD | 在線詢價 |
 |
RHEF070-AP | Littelfuse Inc. | POLYSWITCH PTC RESET .7A AMMO | 在線詢價 |
 |
PRG18BB221MS1RB | Murata Electronics North America | THERMISTOR | 在線詢價 |
 |
0ZCD0200FF2C | Bel Fuse Inc. | PTC RESTTBLE 16V 2.00A CHIP 2920 | 在線詢價 |
 |
SMD200F-2018-2 | Littelfuse Inc. | POLYSWITCH PTC RESET 2A SMD | 在線詢價 |
 |
LVR055S-1 | Littelfuse Inc. | POLYSWITCH PTC RESET .55A 25.4MM | 在線詢價 |
 |
30R250UPR | Littelfuse Inc. | PTC RESETTABLE 2.5A 30V KINK AMO | 在線詢價 |
 |
250R180F | Littelfuse Inc. | PTC RESETBL 60V/250V .180A RAD | 在線詢價 |
|
LVR055K-2 | Littelfuse Inc. | POLYSWITCH PTC RESET 0.55A | 在線詢價 |
