購買 LVB125與BYCHPS
購買即有保證

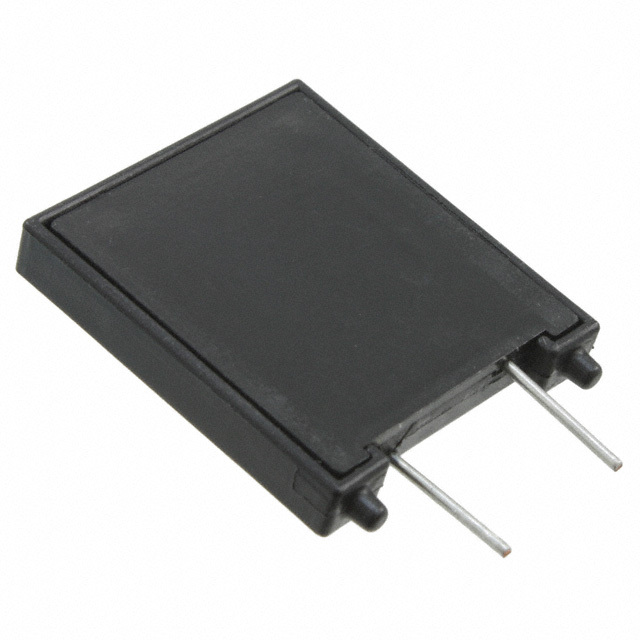

LVB125
- 型號:
- LVB125
- 製造商:
- Littelfuse
- 描述:
- POLYSWITCH 1.25A RESET FUSE RAD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 19357 Pieces
簡單介紹
BYCHIPS是 LVB125的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的LVB125購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 最大: | 240V |
|---|---|
| 類型: | Polymeric |
| 跳閘時間: | 5s |
| 厚度（最大）: | - |
| 尺寸/尺寸: | 0.984" L x 0.175" W (25.00mm x 4.40mm) |
| 系列: | PolySwitch® |
| 電阻 - 跳閘（R1）（最大）: | 482 mOhm |
| 電阻 - 初始（Ri）（最小值）: | 152 mOhm |
| 電阻 - 25°C（典型值）: | - |
| 評級: | - |
| 封装: | Bulk |
| 封裝/箱體: | Radial, Disc |
| 其他名稱: | RF2873-000 RF2873-000-ND RF2873000 |
| 工作溫度: | -40°C ~ 85°C |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 10 Weeks |
| 製造商零件編號: | LVB125 |
| 引線間距: | 0.400" (10.15mm) |
| 高度 - 座高（最大）: | 1.07" (27.20mm) |
| 展開說明: | PTC Resettable Fuse 240V Ih Through Hole Radial, Disc |
| 描述: | POLYSWITCH 1.25A RESET FUSE RAD |
| 電流 - 跳閘（It）: | 2.5A |
| 電流 - 最大: | 12.5A |
| 電流 - 維持（Ih）（最大值）: | 1.25A |
| 認證: | UL |
| Email: | [email protected] |
LVB125的相似型號
| 圖片 | 型號 | 製造商 | 描述 | 查看 |
|---|---|---|---|---|
 |
MF-VS210L-0 | Bourns Inc. | FUSE RESETTABLE | 在線詢價 |
 |
1812L050/30PR | Littelfuse Inc. | FUSE PTC RESET .500A 30V 1812 SM | 在線詢價 |
 |
16VT175ELU | Littelfuse Inc. | PTC RESETTABLE 16V 1.75A STRAP | 在線詢價 |
 |
RUEF800K-2 | Littelfuse Inc. | POLYSWITCH PTC RESET 8A KINK | 在線詢價 |
 |
PTR016V1300-BK1 | Eaton | PTC RESETTABLE RADIAL 16V 13A | 在線詢價 |
 |
B59875C120A51 | EPCOS (TDK) | PTC RESETTABLE 55MA 230V RAD | 在線詢價 |
 |
B59850C160A70 | EPCOS (TDK) | PTC RESETTABLE 250MA 110V RAD | 在線詢價 |
