購買 LSAW-2C-12B與BYCHPS
購買即有保證

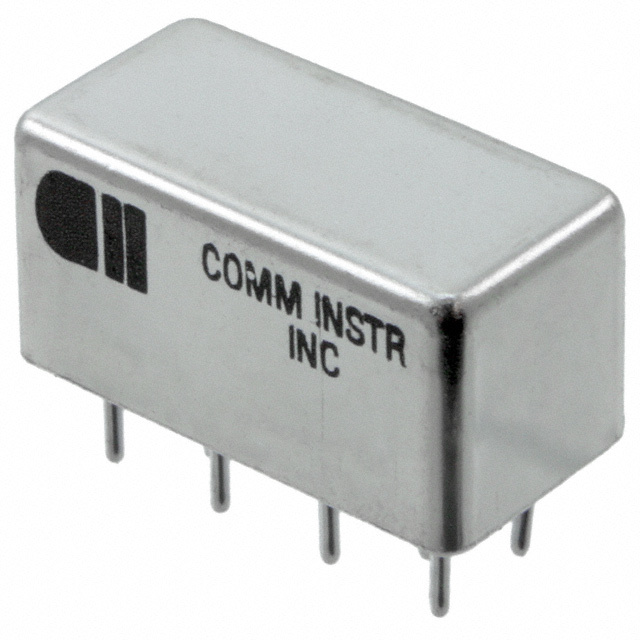

LSAW-2C-12B
- 型號:
- LSAW-2C-12B
- 描述:
- RELAY GEN PURPOSE DPDT 2A 12V
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 18650 Pieces
- 數據表:
- LSAW-2C-12B.pdf
簡單介紹
BYCHIPS是 LSAW-2C-12B的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的LSAW-2C-12B購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 6.5 VDC |
|---|---|
| 關閉電壓（最小）: | - |
| 端接類型: | PC Pin |
| 切換電壓: | 28VDC - Nom |
| 系列: | LS, CII |
| 發布時間: | 5ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 1617091-1 16170911 A107292 |
| 工作溫度: | -65°C ~ 125°C |
| 操作時間: | 5ms |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 21 Weeks |
| 製造商零件編號: | LSAW-2C-12B |
| 特徵: | Sealed - Hermetically |
| 展開說明: | General Purpose Relay DPDT (2 Form C) Through Hole |
| 描述: | RELAY GEN PURPOSE DPDT 2A 12V |
| 觸點額定值（電流）: | 2A |
| 觸點材料: | - |
| 聯繫表: | DPDT (2 Form C) |
| 線圈電壓: | 12VDC |
| 線圈類型: | Latching, Dual Coil |
| 線圈電阻: | 254 Ohms |
| 線圈功率: | 567 mW |
| 線圈電流: | 47.2mA |
| Email: | [email protected] |
