購買 KUMP-11AT8-120與BYCHPS
購買即有保證

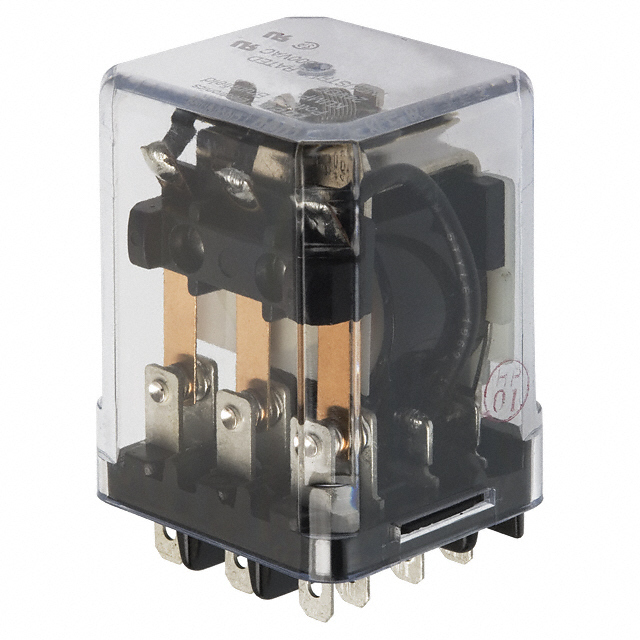

KUMP-11AT8-120
- 型號:
- KUMP-11AT8-120
- 描述:
- RELAY GEN PURPOSE DPDT 15A 120V
- 無鉛狀態/ RoHS狀態:
- 含鉛/符合RoHS
- 庫存數量:
- 13981 Pieces
簡單介紹
BYCHIPS是 KUMP-11AT8-120的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的KUMP-11AT8-120購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 102 VAC |
|---|---|
| 關閉電壓（最小）: | - |
| 端接類型: | Quick Connect - 0.187" (4.7mm) |
| 切換電壓: | 277VAC - Max |
| 系列: | KUMP |
| 發布時間: | 10ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 8-1423996-5 |
| 工作溫度: | -45°C ~ 55°C |
| 操作時間: | 15ms |
| 安裝類型: | Chassis Mount |
| 製造商標準交貨期: | 14 Weeks |
| 製造商零件編號: | KUMP-11AT8-120 |
| 特徵: | Insulation - Class B |
| 展開說明: | General Purpose Relay DPDT (2 Form C) 120VAC Coil Chassis Mount |
| 描述: | RELAY GEN PURPOSE DPDT 15A 120V |
| 觸點額定值（電流）: | 15A |
| 觸點材料: | Silver Cadmium Oxide (AgCdO) |
| 聯繫表: | DPDT (2 Form C) |
| 線圈電壓: | 120VAC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 1.7 kOhms |
| 線圈功率: | 2.9 VA |
| 線圈電流: | 24mA |
| Email: | [email protected] |
