購買 KUEP-7D15-48與BYCHPS
購買即有保證

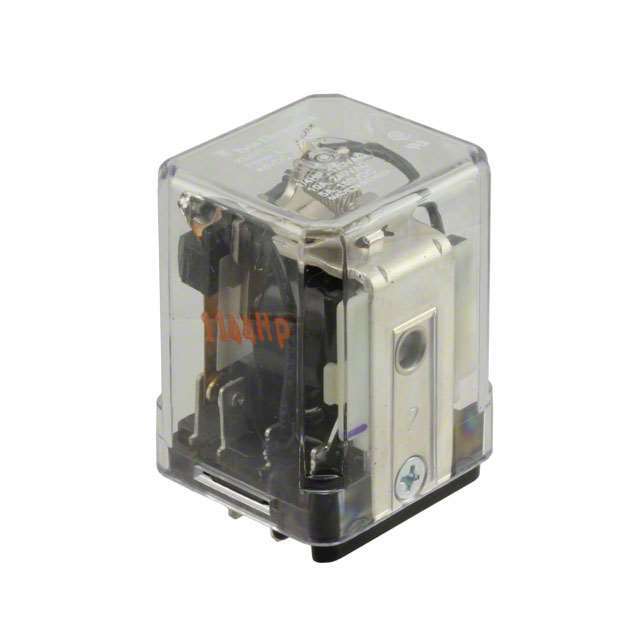

KUEP-7D15-48
- 型號:
- KUEP-7D15-48
- 描述:
- RELAY GEN PURPOSE DPST 10A 48V
- 無鉛狀態/ RoHS狀態:
- 含鉛/符合RoHS
- 庫存數量:
- 14113 Pieces
- 數據表:
- KUEP-7D15-48.pdf
簡單介紹
BYCHIPS是 KUEP-7D15-48的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的KUEP-7D15-48購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 36 VDC |
|---|---|
| 關閉電壓（最小）: | - |
| 端接類型: | Plug In, Quick Connect - 0.187" (4.7mm) |
| 切換電壓: | 150VDC - Max |
| 系列: | KUEP |
| 發布時間: | 10ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 1-1393114-2 1-1393114-2-ND 113931142 KUEP-7D15-48-ND PB1942 |
| 工作溫度: | -45°C ~ 70°C |
| 操作時間: | 15ms |
| 安裝類型: | Socketable |
| 製造商標準交貨期: | 8 Weeks |
| 製造商零件編號: | KUEP-7D15-48 |
| 特徵: | Insulation - Class B |
| 展開說明: | General Purpose Relay DPST (2 Form A) 48VDC Coil Socketable |
| 描述: | RELAY GEN PURPOSE DPST 10A 48V |
| 觸點額定值（電流）: | 10A |
| 觸點材料: | Silver Cadmium Oxide (AgCdO) |
| 聯繫表: | DPST (2 Form A) |
| 線圈電壓: | 48VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 1.25 kOhms |
| 線圈功率: | 1.85 W |
| 線圈電流: | 38mA |
| Email: | [email protected] |
