購買 K81C345與BYCHPS
購買即有保證

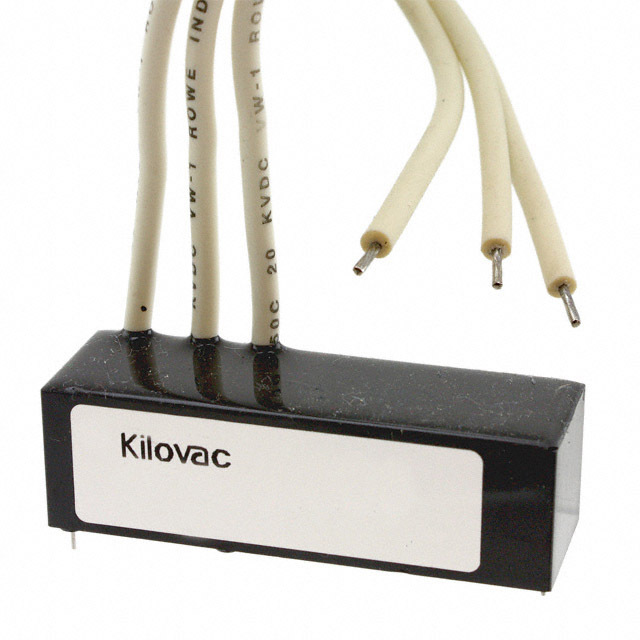

K81C345
- 型號:
- K81C345
- 描述:
- RELAY GEN PURPOSE SPDT 10A 26.5V
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 12346 Pieces
- 數據表:
- K81C345.pdf
簡單介紹
BYCHIPS是 K81C345的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的K81C345購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 16 VDC |
|---|---|
| 關閉電壓（最小）: | 1 VDC |
| 端接類型: | PC Pin, Wire Leads |
| 切換電壓: | 10000VDC - Max |
| 系列: | K81, KILOVAC |
| 發布時間: | 10ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 6-1618241-1 616182411 A104339 |
| 工作溫度: | -55°C ~ 85°C |
| 操作時間: | 10ms |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 13 Weeks |
| 製造商零件編號: | K81C345 |
| 特徵: | - |
| 展開說明: | General Purpose Relay SPDT (1 Form C) 26.5VDC Coil Through Hole |
| 描述: | RELAY GEN PURPOSE SPDT 10A 26.5V |
| 觸點額定值（電流）: | 10A |
| 觸點材料: | - |
| 聯繫表: | SPDT (1 Form C) |
| 線圈電壓: | 26.5VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 290 Ohms |
| 線圈功率: | - |
| Email: | [email protected] |
