購買 K43B732與BYCHPS
購買即有保證

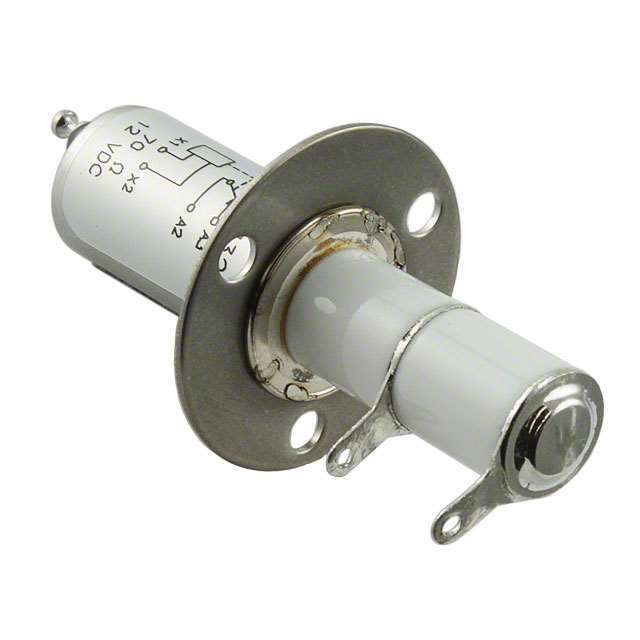

K43B732
- 型號:
- K43B732
- 描述:
- RELAY GENPURPOSE SPST-NC 25A 12V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 12335 Pieces
- 數據表:
- K43B732.pdf
簡單介紹
BYCHIPS是 K43B732的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的K43B732購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 8 VDC |
|---|---|
| 關閉電壓（最小）: | 0.5 VDC |
| 端接類型: | Solder Turret |
| 切換電壓: | 10000VDC - Max |
| 系列: | K43, KILOVAC |
| 發布時間: | 10ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 1-1618240-4 116182404 A104312 |
| 工作溫度: | -55°C ~ 125°C |
| 操作時間: | 10ms |
| 安裝類型: | Panel Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 13 Weeks |
| 製造商零件編號: | K43B732 |
| 特徵: | RF Ratings up to 32 MHz |
| 展開說明: | General Purpose Relay SPST-NC (1 Form B) 12VDC Coil Panel Mount |
| 描述: | RELAY GENPURPOSE SPST-NC 25A 12V |
| 觸點額定值（電流）: | 25A |
| 觸點材料: | - |
| 聯繫表: | SPST-NC (1 Form B) |
| 線圈電壓: | 12VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 70 Ohms |
| 線圈功率: | - |
| Email: | [email protected] |
