購買 K41R334與BYCHPS
購買即有保證

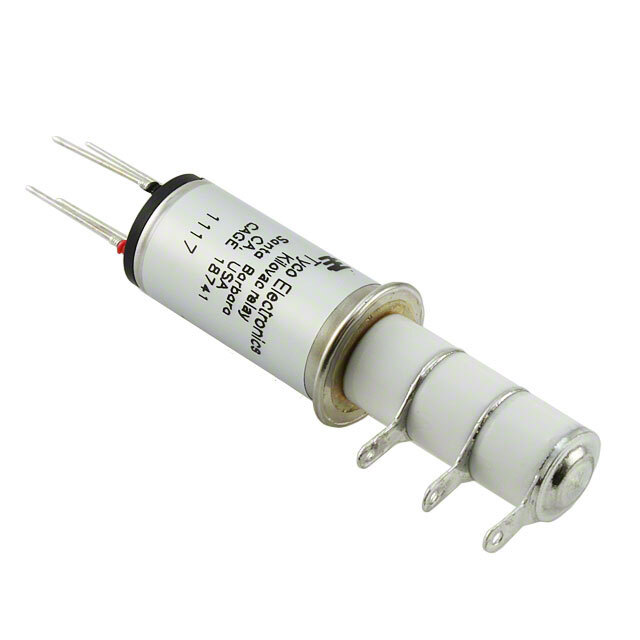

K41R334
- 型號:
- K41R334
- 描述:
- RELAY GEN PURPOSE SPDT 25A 26.5V
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 15826 Pieces
- 數據表:
- K41R334.pdf
簡單介紹
BYCHIPS是 K41R334的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的K41R334購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 16 VDC |
|---|---|
| 關閉電壓（最小）: | - |
| 端接類型: | Wire Leads |
| 切換電壓: | 5000VDC - Max |
| 系列: | K41R, KILOVAC |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 7-1618239-8 716182398 A104322 |
| 工作溫度: | -55°C ~ 125°C |
| 操作時間: | 6ms |
| 安裝類型: | Panel Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 13 Weeks |
| 製造商零件編號: | K41R334 |
| 特徵: | - |
| 展開說明: | General Purpose Relay SPDT (1 Form C) 26.5VDC Coil Panel Mount |
| 描述: | RELAY GEN PURPOSE SPDT 25A 26.5V |
| 觸點額定值（電流）: | 25A |
| 觸點材料: | - |
| 聯繫表: | SPDT (1 Form C) |
| 線圈電壓: | 26.5VDC |
| 線圈類型: | Latching, Single Coil |
| 線圈電阻: | 80 Ohms |
| 線圈功率: | - |
| Email: | [email protected] |
