購買 K10P-11AT5-24與BYCHPS
購買即有保證

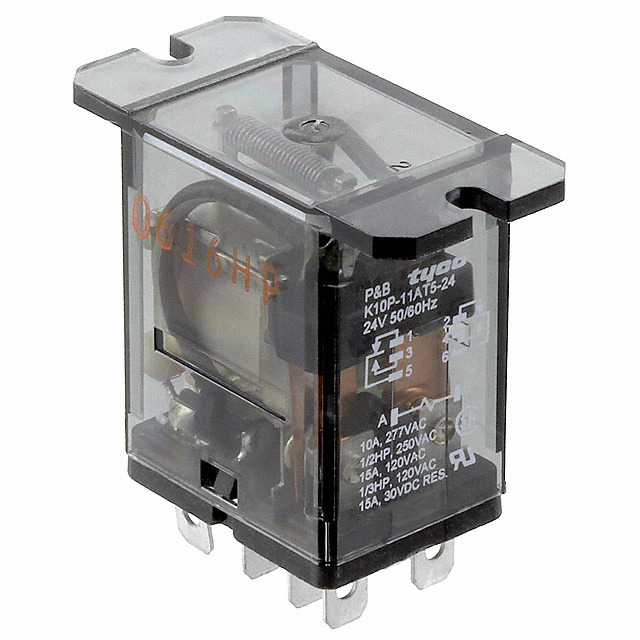

K10P-11AT5-24
- 型號:
- K10P-11AT5-24
- 描述:
- RELAY GEN PURPOSE DPDT 15A 24V
- 無鉛狀態/ RoHS狀態:
- 不適用/符合RoHS
- 庫存數量:
- 13247 Pieces
簡單介紹
BYCHIPS是 K10P-11AT5-24的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的K10P-11AT5-24購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 20.4 VAC |
|---|---|
| 關閉電壓（最小）: | 2.4 VAC |
| 端接類型: | Solder, Quick Connect - 0.187" (4.7mm) |
| 切換電壓: | 120VAC - Max |
| 系列: | K10 |
| 發布時間: | 10ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 3-1393144-5 K10P11AT524 |
| 工作溫度: | -45°C ~ 70°C |
| 操作時間: | 13ms |
| 安裝類型: | Chassis Mount |
| 製造商標準交貨期: | 8 Weeks |
| 製造商零件編號: | K10P-11AT5-24 |
| 特徵: | Insulation - Class B |
| 展開說明: | General Purpose Relay DPDT (2 Form C) 24VAC Coil Chassis Mount |
| 描述: | RELAY GEN PURPOSE DPDT 15A 24V |
| 觸點額定值（電流）: | 15A |
| 觸點材料: | Silver Cadmium Oxide (AgCdO) |
| 聯繫表: | DPDT (2 Form C) |
| 線圈電壓: | 24VAC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 160 Ohms |
| 線圈功率: | 1.25 VA |
| 線圈電流: | 52mA |
| Email: | [email protected] |
