購買 JMGACD-5MW與BYCHPS
購買即有保證

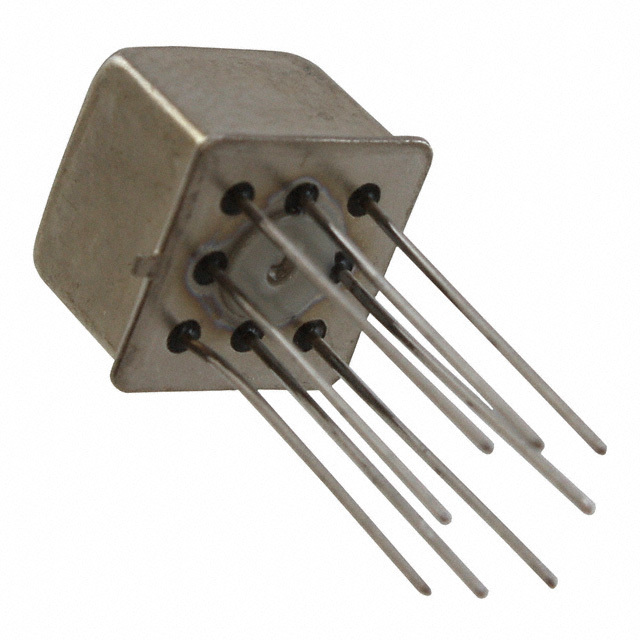

JMGACD-5MW
- 型號:
- JMGACD-5MW
- 描述:
- RELAY GENERAL PURPOSE DPDT 1A 5V
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 16298 Pieces
- 數據表:
- JMGACD-5MW.pdf
簡單介紹
BYCHIPS是 JMGACD-5MW的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的JMGACD-5MW購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 2.7 VDC |
|---|---|
| 關閉電壓（最小）: | 0.22 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 28VDC - Nom |
| 系列: | Military, MIL-R-39016/18, MGA, CII |
| 發布時間: | 4ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 1-1617146-8 1122-1075 1122-1075-MIL A101633 A101633-ND JMGACD5MW M39016/18-037M |
| 工作溫度: | -65°C ~ 125°C |
| 操作時間: | 2ms |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 12 Weeks |
| 製造商零件編號: | JMGACD-5MW |
| 特徵: | Sealed - Hermetically |
| 展開說明: | General Purpose Relay DPDT (2 Form C) Through Hole |
| 描述: | RELAY GENERAL PURPOSE DPDT 1A 5V |
| 觸點額定值（電流）: | 1A |
| 觸點材料: | - |
| 聯繫表: | DPDT (2 Form C) |
| 線圈電壓: | 5VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 50 Ohms |
| 線圈功率: | 500 mW |
| 線圈電流: | 100mA |
| Email: | [email protected] |
