購買 JK1APF-5V與BYCHPS
購買即有保證

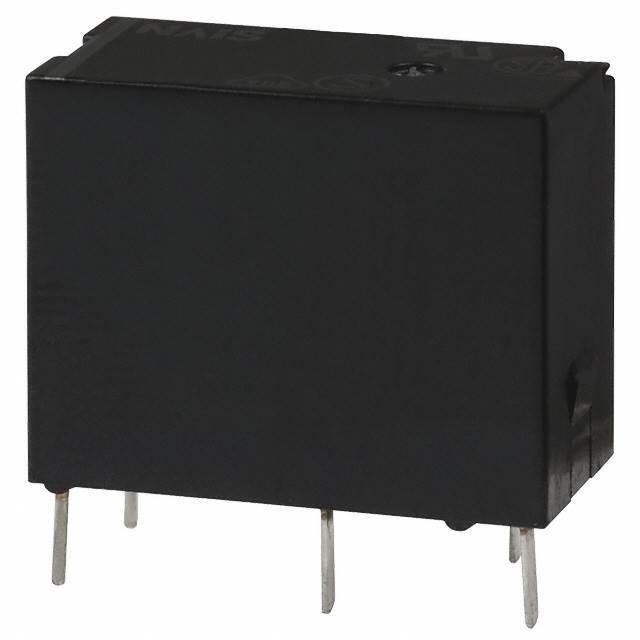

JK1APF-5V
- 型號:
- JK1APF-5V
- 製造商:
- Panasonic
- 描述:
- RELAY GENERAL PURPOSE SPST 8A 5V
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16682 Pieces
- 數據表:
- JK1APF-5V.pdf
簡單介紹
BYCHIPS是 JK1APF-5V的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的JK1APF-5V購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 4 VDC |
|---|---|
| 關閉電壓（最小）: | 0.25 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 250VAC, 110VDC - Max |
| 系列: | JK |
| 發布時間: | 2ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 工作溫度: | -40°C ~ 70°C |
| 操作時間: | 4ms |
| 安裝類型: | Through Hole |
| 製造商零件編號: | JK1APF-5V |
| 特徵: | Sealed - Flux Protection |
| 展開說明: | General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole |
| 描述: | RELAY GENERAL PURPOSE SPST 8A 5V |
| 觸點額定值（電流）: | 8A |
| 觸點材料: | Silver Alloy |
| 聯繫表: | SPST-NO (1 Form A) |
| 線圈電壓: | 5VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 125 Ohms |
| 線圈功率: | 200 mW |
| 線圈電流: | 40mA |
| Email: | [email protected] |
