購買 J1MACD-26XMS與BYCHPS
購買即有保證

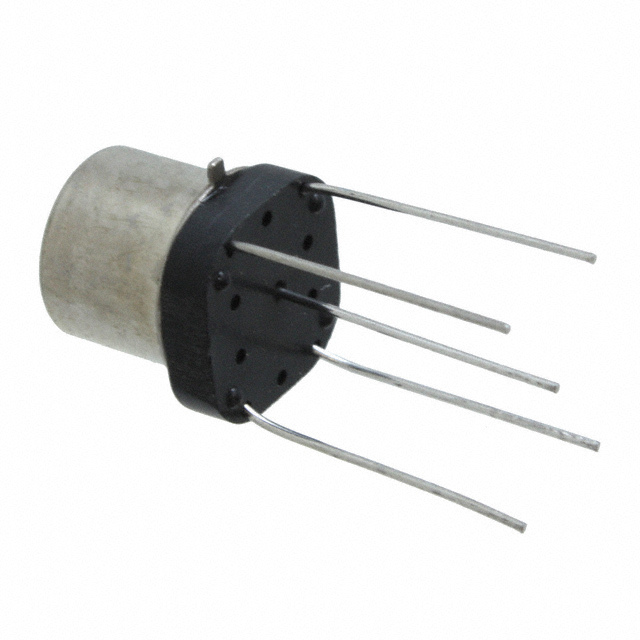

J1MACD-26XMS
- 型號:
- J1MACD-26XMS
- 描述:
- RELAY GEN PURPOSE SPDT 1A 26.5V
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 14111 Pieces
- 數據表:
- J1MACD-26XMS.pdf
簡單介紹
BYCHIPS是 J1MACD-26XMS的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的J1MACD-26XMS購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 14.2 VDC |
|---|---|
| 關閉電壓（最小）: | 1.37 VDC |
| 端接類型: | PC Pin |
| 切換電壓: | 28VDC - Nom |
| 系列: | Military, MIL-R-39016/23, 1MA, CII |
| 發布時間: | 4ms |
| 繼電器類型: | General Purpose |
| 封装: | Bulk |
| 其他名稱: | 1122-1052 1122-1052-MIL 2-1617118-1 A101609 A101609-ND J1MACD26XMS M39016/23-036M |
| 工作溫度: | -65°C ~ 125°C |
| 操作時間: | 2ms |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 15 Weeks |
| 製造商零件編號: | J1MACD-26XMS |
| 特徵: | Sealed - Hermetically |
| 展開說明: | General Purpose Relay SPDT (1 Form C) Through Hole |
| 描述: | RELAY GEN PURPOSE SPDT 1A 26.5V |
| 觸點額定值（電流）: | 1A |
| 觸點材料: | - |
| 聯繫表: | SPDT (1 Form C) |
| 線圈電壓: | 26.5VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 1.56 kOhms |
| 線圈功率: | 450 mW |
| Email: | [email protected] |
