購買 IXTC36P15P與BYCHPS
購買即有保證

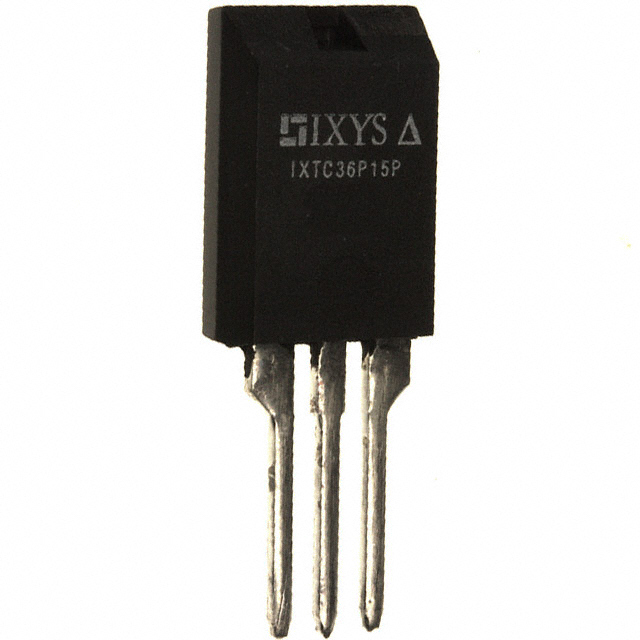

IXTC36P15P
- 型號:
- IXTC36P15P
- 製造商:
- IXYS Corporation
- 描述:
- MOSFET P-CH 150V 22A ISOPLUS220
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 18393 Pieces
- 數據表:
- IXTC36P15P.pdf
簡單介紹
BYCHIPS是 IXTC36P15P的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的IXTC36P15P購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 5V @ 250µA |
|---|---|
| 技術: | MOSFET (Metal Oxide) |
| 供應商設備封裝: | ISOPLUS220™ |
| 系列: | PolarP™ |
| RDS（ON）（最大值）@標識，柵極電壓: | 120 mOhm @ 18A, 10V |
| 功率耗散（最大）: | 150W (Tc) |
| 封装: | Tube |
| 封裝/箱體: | ISOPLUS220™ |
| 工作溫度: | -55°C ~ 175°C (TJ) |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | IXTC36P15P |
| 輸入電容（Ciss）（Max）@ Vds: | 2950pF @ 25V |
| 柵極電荷（Qg）（Max）@ Vgs: | 55nC @ 10V |
| FET型: | P-Channel |
| FET特點: | - |
| 展開說明: | P-Channel 150V 22A (Tc) 150W (Tc) Through Hole ISOPLUS220™ |
| 漏極至源極電壓（Vdss）: | 150V |
| 描述: | MOSFET P-CH 150V 22A ISOPLUS220 |
| 電流 - 25°C連續排水（Id）: | 22A (Tc) |
| Email: | [email protected] |
