購買 IXFA4N100Q-TRL與BYCHPS
購買即有保證

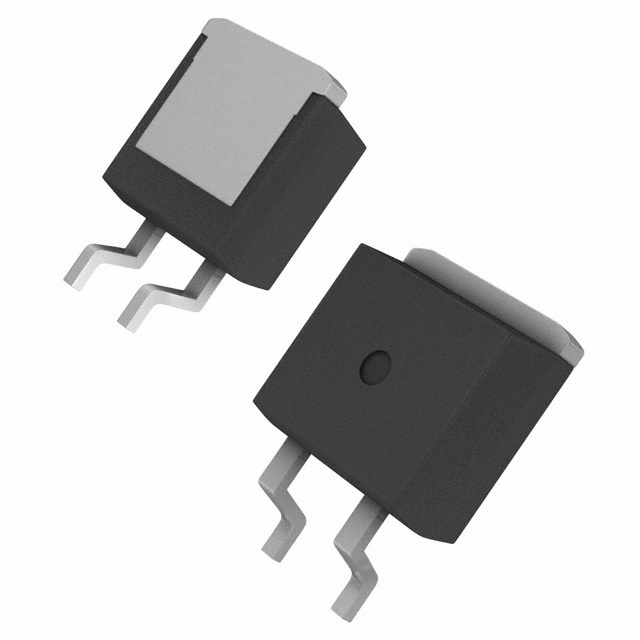

IXFA4N100Q-TRL
- 型號:
- IXFA4N100Q-TRL
- 製造商:
- IXYS Corporation
- 描述:
- MOSFET N-CH 1000V 4A TO-263
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 19487 Pieces
簡單介紹
BYCHIPS是 IXFA4N100Q-TRL的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的IXFA4N100Q-TRL購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 4.5V @ 1.5mA |
|---|---|
| Vgs（最大）: | ±20V |
| 技術: | MOSFET (Metal Oxide) |
| 供應商設備封裝: | TO-263 (IXFA) |
| 系列: | HiPerFET™ |
| RDS（ON）（最大值）@標識，柵極電壓: | 3 Ohm @ 2A, 10V |
| 功率耗散（最大）: | 150W (Tc) |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| 其他名稱: | IXFA4N100Q TRL IXFA4N100Q-TRL-ND IXFA4N100Q-TRLTR IXFA4N100QTRL Q6067406 |
| 工作溫度: | -55°C ~ 150°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 8 Weeks |
| 製造商零件編號: | IXFA4N100Q-TRL |
| 輸入電容（Ciss）（Max）@ Vds: | 1050pF @ 25V |
| 柵極電荷（Qg）（Max）@ Vgs: | 39nC @ 10V |
| FET型: | N-Channel |
| FET特點: | - |
| 展開說明: | N-Channel 1000V (1kV) 4A (Tc) 150W (Tc) Surface Mount TO-263 (IXFA) |
| 驅動電壓（最大Rds開，最小Rds開）: | 10V |
| 漏極至源極電壓（Vdss）: | 1000V (1kV) |
| 描述: | MOSFET N-CH 1000V 4A TO-263 |
| 電流 - 25°C連續排水（Id）: | 4A (Tc) |
| Email: | [email protected] |
