購買 IXBF20N360與BYCHPS
購買即有保證

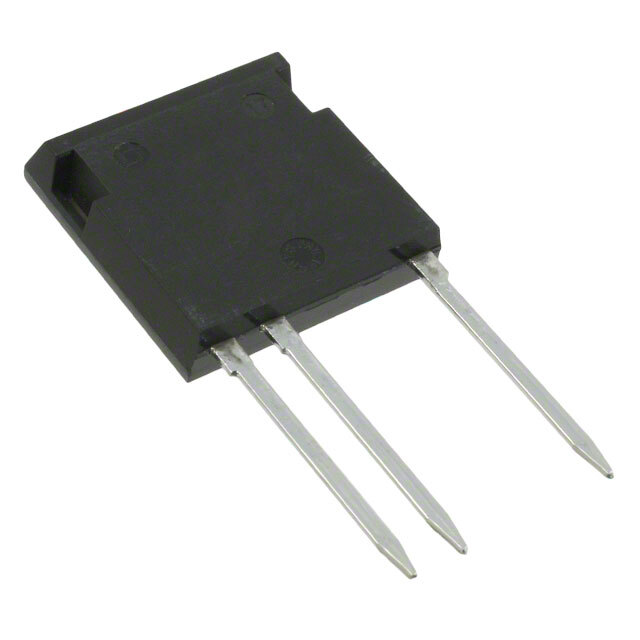

IXBF20N360
- 型號:
- IXBF20N360
- 製造商:
- IXYS Corporation
- 描述:
- IGBT 3600V 45A ISOPLUS I4PAK
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 19627 Pieces
- 數據表:
- IXBF20N360.pdf
簡單介紹
BYCHIPS是 IXBF20N360的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的IXBF20N360購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 集電極發射極擊穿（最大）: | 3600V |
|---|---|
| 的VCE（on）（最大）@ VGE，IC: | 3.4V @ 15V, 20A |
| 測試條件: | 1500V, 20A, 10 Ohm, 15V |
| Td（開/關）@ 25°C: | 18ns/238ns |
| 開關能量: | 15.5mJ (on), 4.3mJ (off) |
| 供應商設備封裝: | ISOPLUS i4-PAC™ |
| 系列: | BIMOSFET™ |
| 反向恢復時間（trr）: | 1.7µs |
| 功率 - 最大: | 230W |
| 封装: | Tube |
| 封裝/箱體: | i4-Pac™-5 |
| 工作溫度: | -55°C ~ 150°C (TJ) |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 8 Weeks |
| 製造商零件編號: | IXBF20N360 |
| 輸入類型: | Standard |
| IGBT類型: | - |
| 柵極電荷: | 43nC |
| 展開說明: | IGBT 3600V 45A 230W Through Hole ISOPLUS i4-PAC™ |
| 描述: | IGBT 3600V 45A ISOPLUS I4PAK |
| 電流 - 集電極脈衝（ICM）: | 220A |
| 電流 - 集電極（Ic）（最大）: | 45A |
| Email: | [email protected] |
