購買 IRLZ24LPBF與BYCHPS
購買即有保證

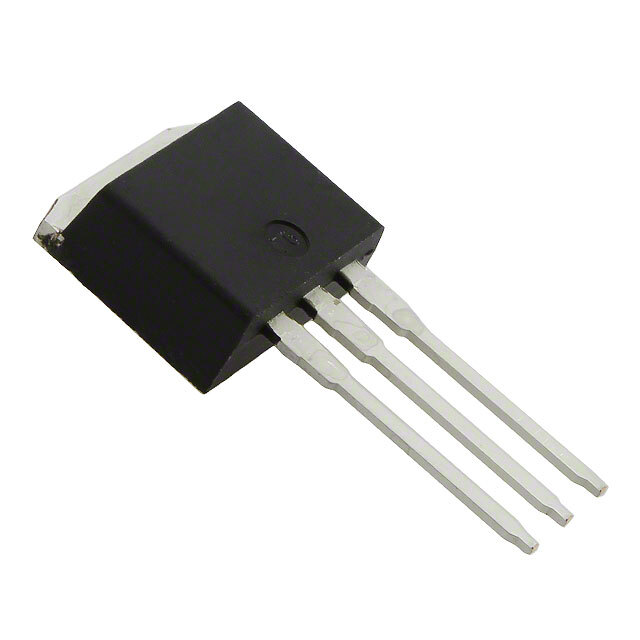

IRLZ24LPBF
- 型號:
- IRLZ24LPBF
- 描述:
- MOSFET N-CH 60V 17A TO-262
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17736 Pieces
- 數據表:
- IRLZ24LPBF.pdf
簡單介紹
BYCHIPS是 IRLZ24LPBF的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的IRLZ24LPBF購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 2V @ 250µA |
|---|---|
| Vgs（最大）: | ±10V |
| 技術: | MOSFET (Metal Oxide) |
| 供應商設備封裝: | TO-262-3 |
| 系列: | - |
| RDS（ON）（最大值）@標識，柵極電壓: | 100 mOhm @ 10A, 5V |
| 功率耗散（最大）: | 3.7W (Ta), 60W (Tc) |
| 封装: | Tube |
| 封裝/箱體: | TO-262-3 Long Leads, I²Pak, TO-262AA |
| 其他名稱: | *IRLZ24LPBF |
| 工作溫度: | -55°C ~ 175°C (TJ) |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 12 Weeks |
| 製造商零件編號: | IRLZ24LPBF |
| 輸入電容（Ciss）（Max）@ Vds: | 870pF @ 25V |
| 柵極電荷（Qg）（Max）@ Vgs: | 18nC @ 5V |
| FET型: | N-Channel |
| FET特點: | - |
| 展開說明: | N-Channel 60V 17A (Tc) 3.7W (Ta), 60W (Tc) Through Hole TO-262-3 |
| 驅動電壓（最大Rds開，最小Rds開）: | 4V, 5V |
| 漏極至源極電壓（Vdss）: | 60V |
| 描述: | MOSFET N-CH 60V 17A TO-262 |
| 電流 - 25°C連續排水（Id）: | 17A (Tc) |
| Email: | [email protected] |
IRLZ24LPBF的相似型號
| 圖片 | 型號 | 製造商 | 描述 | 查看 |
|---|---|---|---|---|
 |
FQB6N60TM | Fairchild/ON Semiconductor | MOSFET N-CH 600V 6.2A D2PAK | 在線詢價 |
 |
FCH47N60_F085 | Fairchild/ON Semiconductor | MOSFET N-CH 600V 47A TO-247 | 在線詢價 |
 |
IRLZ24PBF | Vishay Siliconix | MOSFET N-CH 60V 17A TO-220AB | 在線詢價 |
|
IRLZ24 | Vishay Siliconix | MOSFET N-CH 60V 17A TO-220AB | 在線詢價 |
 |
IRLZ24STRL | Vishay Siliconix | MOSFET N-CH 60V 17A D2PAK | 在線詢價 |
|
IRLZ24STRR | Vishay Siliconix | MOSFET N-CH 60V 17A D2PAK | 在線詢價 |
|
IRLZ24SPBF | Vishay Siliconix | MOSFET N-CH 60V 17A D2PAK | 在線詢價 |
 |
STF34N65M5 | STMicroelectronics | MOSFET N-CH 650V 29A TO-220FP | 在線詢價 |
|
IRLZ24S | Vishay Siliconix | MOSFET N-CH 60V 17A D2PAK | 在線詢價 |
 |
IRF7855PBF | Infineon Technologies | MOSFET N-CH 60V 12A 8-SOIC | 在線詢價 |
 |
IRLZ24L | Vishay Siliconix | MOSFET N-CH 60V 17A TO-262 | 在線詢價 |
 |
ATP304-TL-H | ON Semiconductor | MOSFET P-CH 60V 100A ATPAK | 在線詢價 |
 |
SPP80N03S2-03 | Infineon Technologies | MOSFET N-CH 30V 80A TO-220 | 在線詢價 |
