購買 IRL6283MTRPBF與BYCHPS
購買即有保證

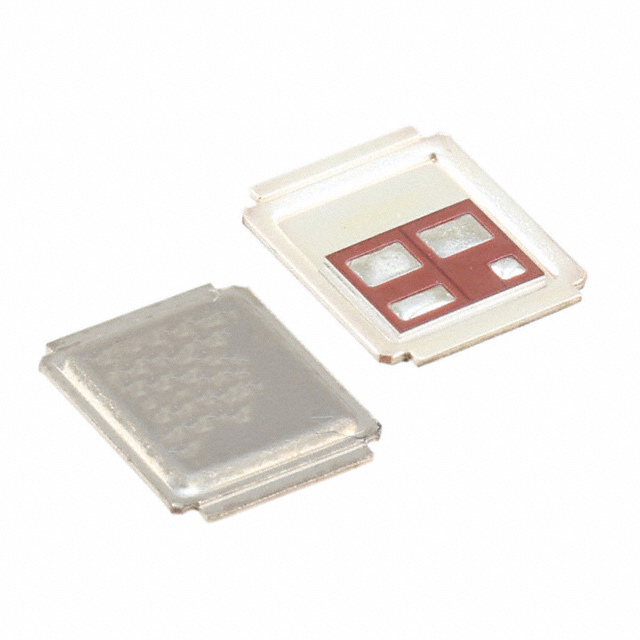

IRL6283MTRPBF
- 型號:
- IRL6283MTRPBF
- 描述:
- MOSFET N-CH 20V 211A DIRECTFET
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 15035 Pieces
簡單介紹
BYCHIPS是 IRL6283MTRPBF的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的IRL6283MTRPBF購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 1.1V @ 100µA |
|---|---|
| 技術: | MOSFET (Metal Oxide) |
| 供應商設備封裝: | DIRECTFET™ MD |
| 系列: | HEXFET®, StrongIRFET™ |
| RDS（ON）（最大值）@標識，柵極電壓: | 0.75 mOhm @ 50A, 10V |
| 功率耗散（最大）: | 2.1W (Ta), 63W (Tc) |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | DirectFET™ Isometric MD |
| 其他名稱: | IRL6283MTRPBF-ND IRL6283MTRPBFTR SP001578706 |
| 工作溫度: | -40°C ~ 150°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | IRL6283MTRPBF |
| 輸入電容（Ciss）（Max）@ Vds: | 8292pF @ 10V |
| 柵極電荷（Qg）（Max）@ Vgs: | 158nC @ 4.5V |
| FET型: | N-Channel |
| FET特點: | - |
| 展開說明: | N-Channel 20V 38A (Ta), 211A (Tc) 2.1W (Ta), 63W (Tc) Surface Mount DIRECTFET™ MD |
| 漏極至源極電壓（Vdss）: | 20V |
| 描述: | MOSFET N-CH 20V 211A DIRECTFET |
| 電流 - 25°C連續排水（Id）: | 38A (Ta), 211A (Tc) |
| Email: | [email protected] |
