購買 IRFPS40N50L與BYCHPS
購買即有保證

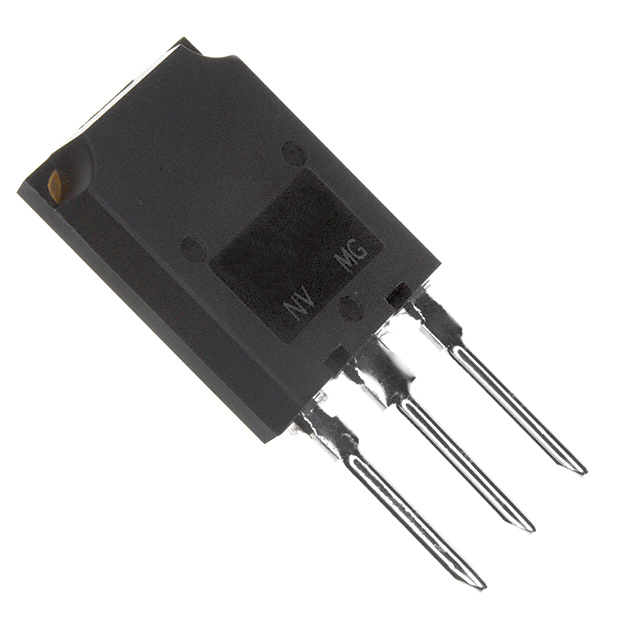

IRFPS40N50L
- 型號:
- IRFPS40N50L
- 描述:
- MOSFET N-CH 500V 46A SUPER247
- 無鉛狀態/ RoHS狀態:
- 包含鉛/ RoHS不兼容
- 庫存數量:
- 15966 Pieces
- 數據表:
- IRFPS40N50L.pdf
簡單介紹
BYCHIPS是 IRFPS40N50L的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的IRFPS40N50L購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 5V @ 250µA |
|---|---|
| 技術: | MOSFET (Metal Oxide) |
| 供應商設備封裝: | SUPER-247 (TO-274AA) |
| 系列: | - |
| RDS（ON）（最大值）@標識，柵極電壓: | 100 mOhm @ 28A, 10V |
| 功率耗散（最大）: | 540W (Tc) |
| 封装: | Tube |
| 封裝/箱體: | TO-274AA |
| 其他名稱: | *IRFPS40N50L |
| 工作溫度: | -55°C ~ 150°C (TJ) |
| 安裝類型: | Through Hole |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | IRFPS40N50L |
| 輸入電容（Ciss）（Max）@ Vds: | 8110pF @ 25V |
| 柵極電荷（Qg）（Max）@ Vgs: | 380nC @ 10V |
| FET型: | N-Channel |
| FET特點: | - |
| 展開說明: | N-Channel 500V 46A (Tc) 540W (Tc) Through Hole SUPER-247 (TO-274AA) |
| 漏極至源極電壓（Vdss）: | 500V |
| 描述: | MOSFET N-CH 500V 46A SUPER247 |
| 電流 - 25°C連續排水（Id）: | 46A (Tc) |
| Email: | [email protected] |
IRFPS40N50L的相似型號
| 圖片 | 型號 | 製造商 | 描述 | 查看 |
|---|---|---|---|---|
 |
IRFPS40N60KPBF | Vishay Siliconix | MOSFET N-CH 600V 40A SUPER247 | 在線詢價 |
|
IRFPS29N60LPBF | Vishay Siliconix | MOSFET N-CH 600V 29A SUPER247 | 在線詢價 |
|
IRFPS38N60LPBF | Vishay Siliconix | MOSFET N-CH 600V 38A SUPER247 | 在線詢價 |
|
IRFPS40N50LPBF | Vishay Siliconix | MOSFET N-CH 500V 46A SUPER247 | 在線詢價 |
 |
IRFPS40N60K | Vishay Siliconix | MOSFET N-CH 600V 40A SUPER247 | 在線詢價 |
|
IRFPS35N50LPBF | Vishay Siliconix | MOSFET N-CH 500V 34A SUPER247 | 在線詢價 |
|
IRFPS43N50K | Vishay Siliconix | MOSFET N-CH 500V 47A SUPER247 | 在線詢價 |
|
IRFPS37N50APBF | Vishay Siliconix | MOSFET N-CH 500V 36A SUPER247 | 在線詢價 |
|
IRFPS37N50A | Vishay Siliconix | MOSFET N-CH 500V 36A SUPER247 | 在線詢價 |
|
IRFPS30N60KPBF | Vishay Siliconix | MOSFET N-CH 600V 30A SUPER247 | 在線詢價 |
|
IRFPS38N60L | Vishay Siliconix | MOSFET N-CH 600V 38A SUPER247 | 在線詢價 |
|
IRFPS43N50KPBF | Vishay Siliconix | MOSFET N-CH 500V 47A SUPER247 | 在線詢價 |
