購買 IRF3546MTRPBF與BYCHPS
購買即有保證

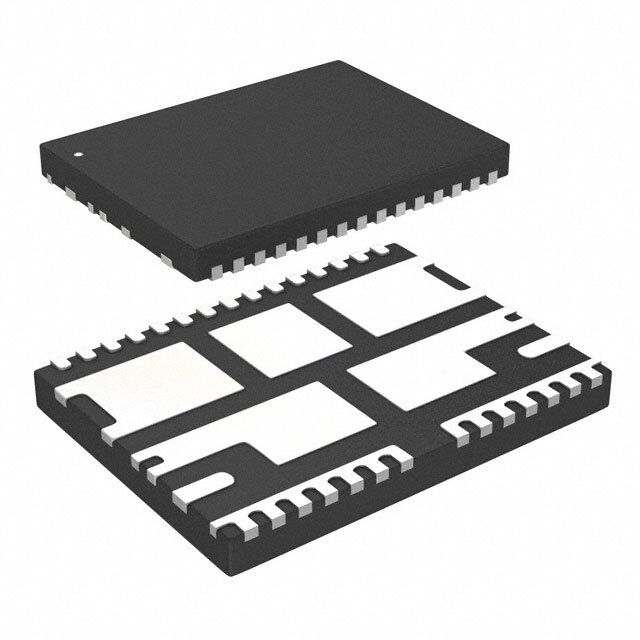

IRF3546MTRPBF
- 型號:
- IRF3546MTRPBF
- 描述:
- MOSFET 4N-CH 25V 16A/20A 41PQFN
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 17189 Pieces
簡單介紹
BYCHIPS是 IRF3546MTRPBF的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的IRF3546MTRPBF購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 2.1V @ 35µA |
|---|---|
| 供應商設備封裝: | 41-PQFN (6x8) |
| 系列: | - |
| RDS（ON）（最大值）@標識，柵極電壓: | 3.9 mOhm @ 27A, 10V |
| 功率 - 最大: | - |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 41-PowerVFQFN |
| 其他名稱: | IRF3546MTRPBF-ND IRF3546MTRPBFTR SP001530116 |
| 工作溫度: | -40°C ~ 150°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 3 (168 Hours) |
| 製造商標準交貨期: | 12 Weeks |
| 製造商零件編號: | IRF3546MTRPBF |
| 輸入電容（Ciss）（Max）@ Vds: | 1310pF @ 13V |
| 柵極電荷（Qg）（Max）@ Vgs: | 15nC @ 4.5V |
| FET型: | 4 N-Channel |
| FET特點: | Logic Level Gate |
| 展開說明: | Mosfet Array 4 N-Channel 25V 16A (Tc), 20A (Tc) Surface Mount 41-PQFN (6x8) |
| 漏極至源極電壓（Vdss）: | 25V |
| 描述: | MOSFET 4N-CH 25V 16A/20A 41PQFN |
| 電流 - 25°C連續排水（Id）: | 16A (Tc), 20A (Tc) |
| Email: | [email protected] |
