購買 IPB017N10N5ATMA1與BYCHPS
購買即有保證

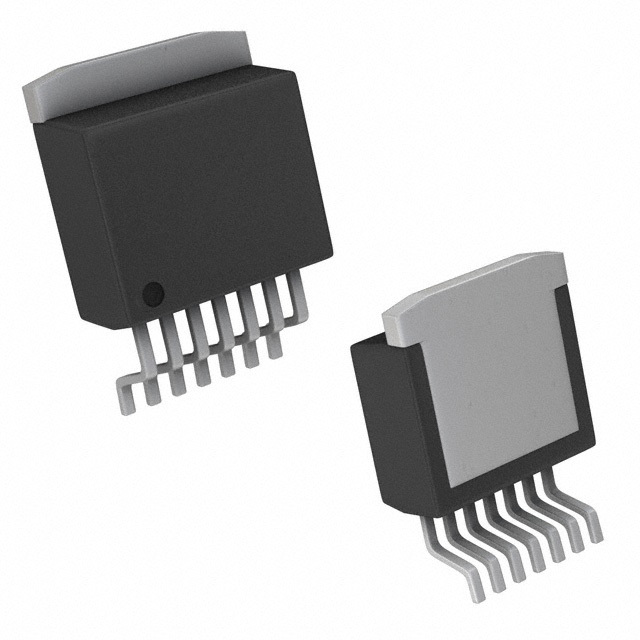

IPB017N10N5ATMA1
- 型號:
- IPB017N10N5ATMA1
- 描述:
- MOSFET N-CH 100V 180A D2PAK-7
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 14743 Pieces
簡單介紹
BYCHIPS是 IPB017N10N5ATMA1的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的IPB017N10N5ATMA1購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| VGS（TH）（最大）@標識: | 3.8V @ 279µA |
|---|---|
| Vgs（最大）: | ±20V |
| 技術: | MOSFET (Metal Oxide) |
| 供應商設備封裝: | PG-TO263-7 |
| 系列: | OptiMOS™ |
| RDS（ON）（最大值）@標識，柵極電壓: | 1.7 mOhm @ 100A, 10V |
| 功率耗散（最大）: | 375W (Tc) |
| 封装: | Original-Reel® |
| 封裝/箱體: | TO-263-7, D²Pak (6 Leads + Tab) |
| 其他名稱: | IPB017N10N5ATMA1DKR |
| 工作溫度: | -55°C ~ 175°C (TJ) |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商標準交貨期: | 14 Weeks |
| 製造商零件編號: | IPB017N10N5ATMA1 |
| 輸入電容（Ciss）（Max）@ Vds: | 15600pF @ 50V |
| 柵極電荷（Qg）（Max）@ Vgs: | 210nC @ 10V |
| FET型: | N-Channel |
| FET特點: | - |
| 展開說明: | N-Channel 100V 180A (Tc) 375W (Tc) Surface Mount PG-TO263-7 |
| 驅動電壓（最大Rds開，最小Rds開）: | 6V, 10V |
| 漏極至源極電壓（Vdss）: | 100V |
| 描述: | MOSFET N-CH 100V 180A D2PAK-7 |
| 電流 - 25°C連續排水（Id）: | 180A (Tc) |
| Email: | [email protected] |
