購買 IP4035CX24/LF/P,13與BYCHPS
購買即有保證

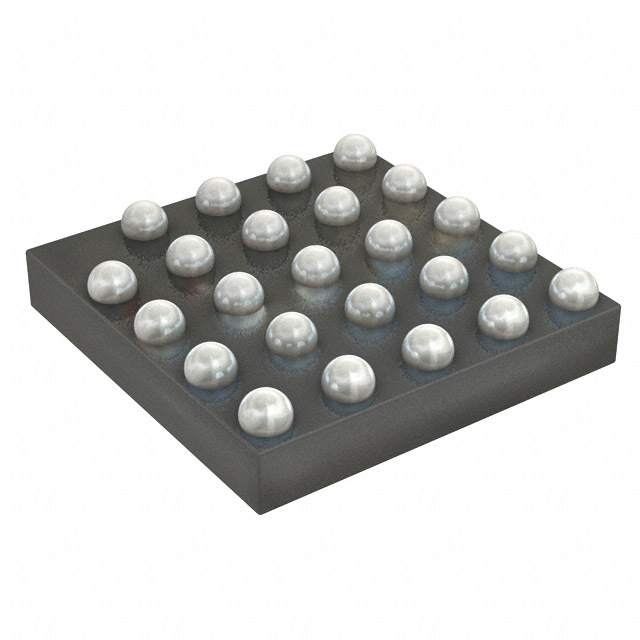

IP4035CX24/LF/P,13
- 型號:
- IP4035CX24/LF/P,13
- 描述:
- FILTER RC(PI) 1 KOHM/50PF SMD
- 無鉛狀態/ RoHS狀態:
- 無鉛/符合RoHS
- 庫存數量:
- 16583 Pieces
簡單介紹
BYCHIPS是 IP4035CX24/LF/P,13的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的IP4035CX24/LF/P,13購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 電壓 - 額定: | - |
|---|---|
| 值: | R = 1 kOhms (Total), C = 50pF (Total) |
| 類型: | Low Pass |
| 技術: | RC (Pi) |
| 尺寸/尺寸: | 0.096" L x 0.095" W (2.45mm x 2.41mm) |
| 系列: | - |
| 電阻 - 通道（歐姆）: | 1k |
| 封装: | Tape & Reel (TR) |
| 封裝/箱體: | 24-WFBGA, WLCSP |
| 其他名稱: | 568-5867-2 934061587135 IP4035CX24/LF/P,13-ND |
| 工作溫度: | -45°C ~ 85°C |
| 通道數: | 10 |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 1 (Unlimited) |
| 製造商零件編號: | IP4035CX24/LF/P,13 |
| 高度: | 0.028" (0.70mm) |
| 濾波器階: | 2nd |
| 展開說明: | RC (Pi) EMI Filter 2nd Order Low Pass 10 Channel R = 1 kOhms (Total), C = 50pF (Total) 7mA 24-WFBGA, WLCSP |
| ESD保護: | Yes |
| 描述: | FILTER RC(PI) 1 KOHM/50PF SMD |
| 當前: | 7mA |
| 中心/截止頻率: | - |
| 衰減值: | 25dB @ 800MHz ~ 3GHz |
| 應用: | Data Lines for Mobile Devices |
| Email: | [email protected] |
