購買 IM01JR與BYCHPS
購買即有保證
簡單介紹
BYCHIPS是 IM01JR的现货代理商，我們有庫存立即運輸，也可供長時間供應。請寄給我們您的IM01JR購買計劃通過電子郵件，我們會根據您的計劃給您最優惠的價格。
產品特性
| 開啟電壓（最大值）: | 2.25 VDC |
|---|---|
| 關閉電壓（最小）: | 0.3 VDC |
| 端接類型: | J Lead |
| 切換電壓: | 250VAC, 220VDC - Max |
| 系列: | IM, AXICOM |
| 發布時間: | 3ms |
| 繼電器類型: | Telecom |
| 封装: | Tape & Reel (TR) |
| 其他名稱: | 4-1462037-0 PB1098TR |
| 工作溫度: | -40°C ~ 85°C |
| 操作時間: | 3ms |
| 安裝類型: | Surface Mount |
| 濕度敏感度（MSL）: | 3 (168 Hours) |
| 製造商標準交貨期: | 11 Weeks |
| 製造商零件編號: | IM01JR |
| 特徵: | Sealed - Hermetically |

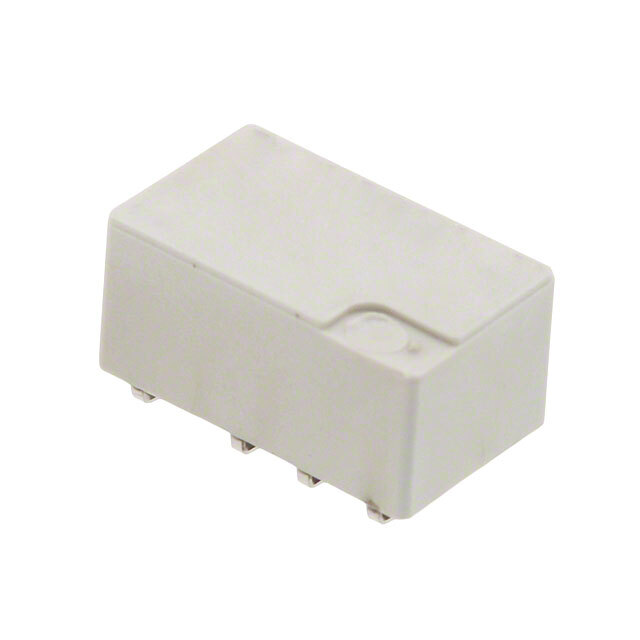

| 展開說明: | Telecom Relay DPDT (2 Form C) Surface Mount |
| 描述: | RELAY TELECOM DPDT 2A 3V |
| 觸點額定值（電流）: | 2A |
| 觸點材料: | Palladium (Pd), Ruthenium (Ru), Gold (Au) |
| 聯繫表: | DPDT (2 Form C) |
| 線圈電壓: | 3VDC |
| 線圈類型: | Non Latching |
| 線圈電阻: | 64 Ohms |
| 線圈功率: | 140 mW |
| 線圈電流: | 46.7mA |
| Email: | [email protected] |
